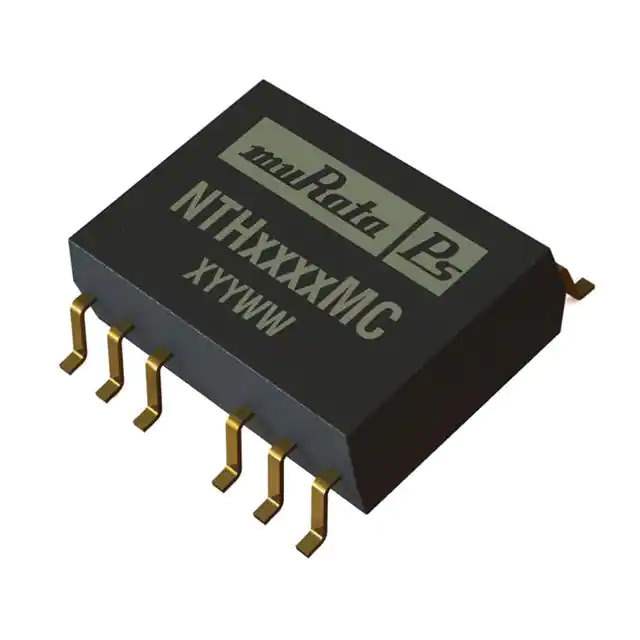

NTH0515MC Real Image
Same model may have multiple batches, images only for reference.

NTH0515MC

Part No NTH0515MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NTH (2W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 67mA, 67mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Surface Mount
Package / Case 26-SMD Module, 12 Leads
Size / Dimension 0.70" L x 0.50" W x 0.23" H (17.8mm x 12.7mm x 5.8mm)
Base Product Number NTH05
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649805-NTH0515MC
Ultra Librarian 3D Model Ultra Librarian NTH0515MC CAD Model

Description

The NTH0515MC is a power supply module designed for board mount applications.

  • Product Name: NTH0515MC
  • Series: NTH
  • Power: 2W
  • Isolation: 1 kV
  • Number of Outputs: 2
  • Maximum Current per Output: 67mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltages: 15V and -15V
  • Efficiency: 84%
  • Application: ITE (Commercial)
  • Mounting Type: Surface Mount
  • Package: 26-SMD Module with 12 leads
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Status: Obsolete
