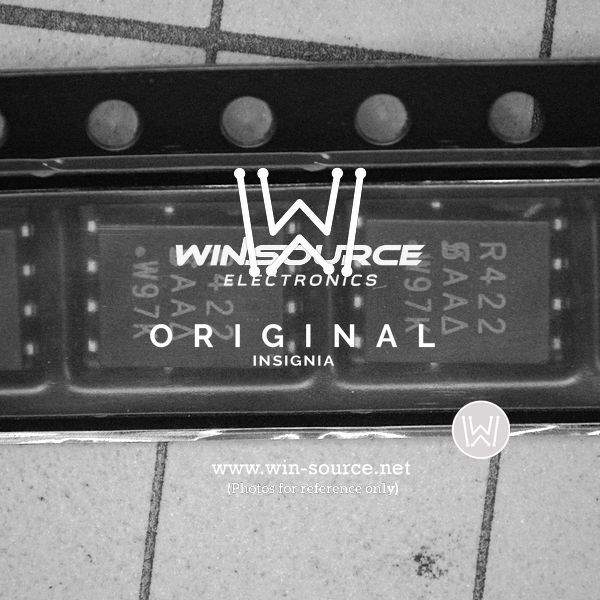

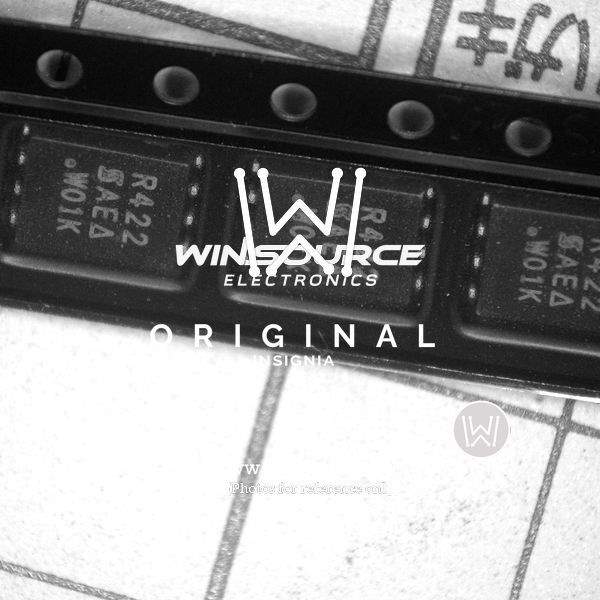

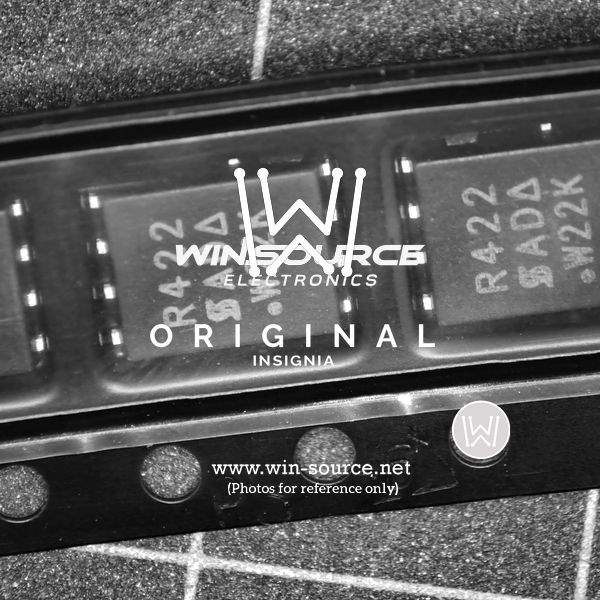

Same model may have multiple batches, images only for reference.

SIR422DP-T1-GE3

Name: SIR422DP-T1-GE3
Brand: Vishay
SKU: 324080
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SIR422DP-T1-GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	Trans MOSFET N-CH 40V 40A 8-Pin PowerPAK SO T/R / MOSFET N-CH 40V 40A PPAK SO-8
Datasheet	SIR422DP-T1-GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Polarity	N-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	40V
Continuous Drain Current at 25°C	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	2.5V @ 250μA
Max Gate Charge	48nC @ 10V
Max Input Capacitance	1785pF @ 20V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	5W (Ta), 34.7W (Tc)
Maximum Rds On at Id,Vgs	6.6 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 150°C (TJ)
Mounting	SMD (SMT)
Case / Package	PowerPAK SO-8
Dimension	PowerPAK SO-8
Win Source Part Number	028754-SIR422DP-T1-GE3
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Application Field	Used in Industrial, Power Management
Family Name	SiR422DP
Introduction Date	July 22, 2009
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian SIR422DP-T1-GE3 CAD Model

Alternative Products

Description

The Vishay MOSFET with a part number of 028754-SIR422DP-T1-GE3 is an N-Channel MOSFET that is suitable for a variety of electronic applications.

Type: N-Channel MOSFET
Power Dissipation: 5W (Ta), 34.7W (Tc)
Drain-Source Breakdown Voltage: 40V
Continuous Drain Current @ 25°C: 40A (Tc)
Gate-Source Threshold Voltage: 2.5V @ 250μA
Maximum Gate-Source Voltage: ±20V
Maximum Rds On @ Id,Vgs: 6.6 mOhm @ 20A, 10V
Package: PowerPAK SO-8
Popularity: High
Application: Industrial power management
