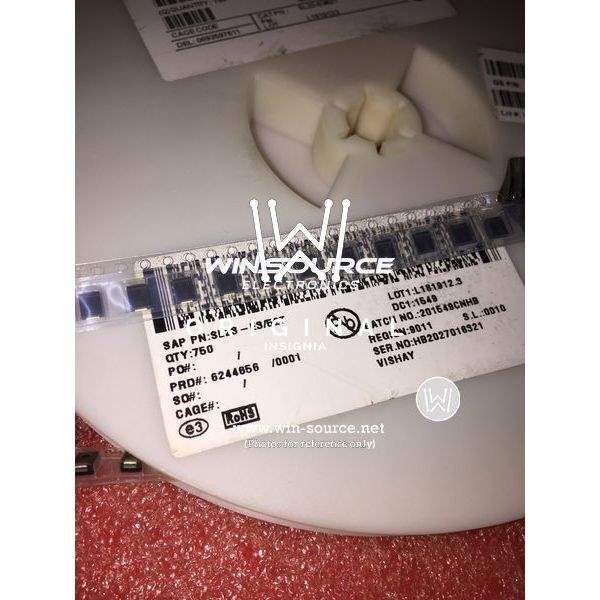

SL23-E3/52T Vishay SL23-E3/52T Real Image SL23-E3/52T real image
Same model may have multiple batches, images only for reference.
SL23-E3/52T Vishay SL23-E3/52T Real Image SL23-E3/52T real image
SL23-E3/52T Vishay SL23-E3/52T Real Image SL23-E3/52T real image
Same model may have multiple batches, images only for reference.

SL23-E3/52T

Part No SL23-E3/52T
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description Rectifier Diode Schottky 30V 2A 2-Pin SMB T/R / DIODE SCHOTTKY 30V 2A DO214AA
Datasheet
SL23-E3/52T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 440mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 400μA @ 30V
Mounting SMD (SMT)
Case / Package DO-214AA (SMB)
Operating Temperature - Junction -55°C to 125°C
Win Source Part Number 028811-SL23-E3/52T
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name SL23
Introduction Date June 24, 1998
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian SL23-E3/52T CAD Model

Description

The SL23-E3/52T is a Schottky diode manufactured by Vishay.

  • Mounting Type: SMD
  • Package: DO-214AA (SMB)
  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 2A
  • Forward Voltage: 440mV @ 2A
  • Reverse Leakage Current: 400μA @ 30V
  • Operating Temperature Range: -55°C to 125°C
  • Status: Active
  • Alternative Parts: SL23HE3_A/H, SL23HM3_A/H, SL23HE3_A/I, and SL23HM3_A/I
