Same model may have multiple batches, images only for reference.

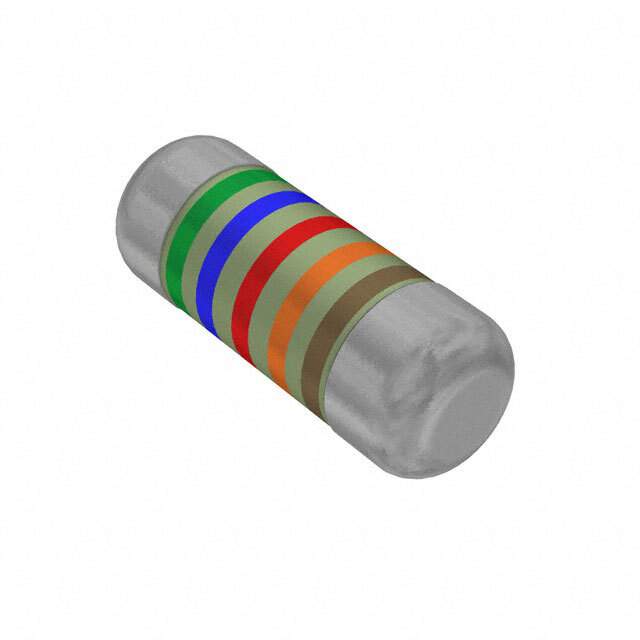

SMM02040C5623FB300 Real Image
Same model may have multiple batches, images only for reference.

SMM02040C5623FB300

Part No SMM02040C5623FB300
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 562K OHM 1% 1/4W MELF 0204
Datasheet
SMM02040C5623FB300 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 40 Weeks
Features 562 kOhms ±1% 0.25W, 1/4W Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
Manufacturer Vishay
Series SMM0204
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Package MELF, 0204
Case / Package Mini MELF
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0040
Other Part Number 749-1356-6, 749-1356-1, 749-1356-2
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 896244-SMM02040C5623FB300
Ultra Librarian 3D Model Ultra Librarian SMM02040C5623FB300 CAD Model

Description

This electronic component is manufactured by Vishay, and its Win Source Part Number is 896244-SMM02040C5623FB300.

  • Resistance: 562 kOhms ±1%
  • Power Rating: 0.25W, 1/4W
  • Resistor Type: Chip Resistor MELF, 0204 Anti-Sulfur, Automotive AEC-Q200, Pulse Withstanding Thin Film
  • Series: SMM0204
  • Operating Temperature Range: From -55°C to 125°C
  • Package: Mini MELF case or package
  • Category: Resistors
  • ECCN: EAR99
  • Popularity: High in the market, with a 54% chance of fake products being sold
  • Supply and Demand Status: Balanced
  • Quantity per Package: 3,000
  • MSL Level: 1 (Unlimited)
  • Estimated Production Lead Time: 40 weeks
  • HTSUS: 8533.21.0040
  • Other Part Numbers: 749-1356-6, 749-1356-1, 749-1356-2
