The SQJ960EP is an N-Channel power MOSFET designed for high-efficiency power conversion and load switching applications. Manufactured by Vishay, this MOSFET offers low on-resistance and high current capability, making it suitable for synchronous rectification and other demanding applications.

Applications

• Synchronous rectification in DC-DC converters
• Power supplies
• Motor control
• Load switching
• Battery management systems

Features

• Low on-resistance (RDS(on))
• High current capability
• Fast switching speed
• TrenchFET® Power MOSFET technology
• 100% Rg tested

Benefits

• Improved efficiency due to low on-resistance, reducing power loss and heat generation.
• Suitable for high-current applications, providing robust performance.
• Fast switching speed minimizes switching losses, increasing overall efficiency.
• Advanced TrenchFET technology ensures optimal performance and reliability.
• Guaranteed gate resistance (Rg) ensures predictable switching behavior.

Specifications

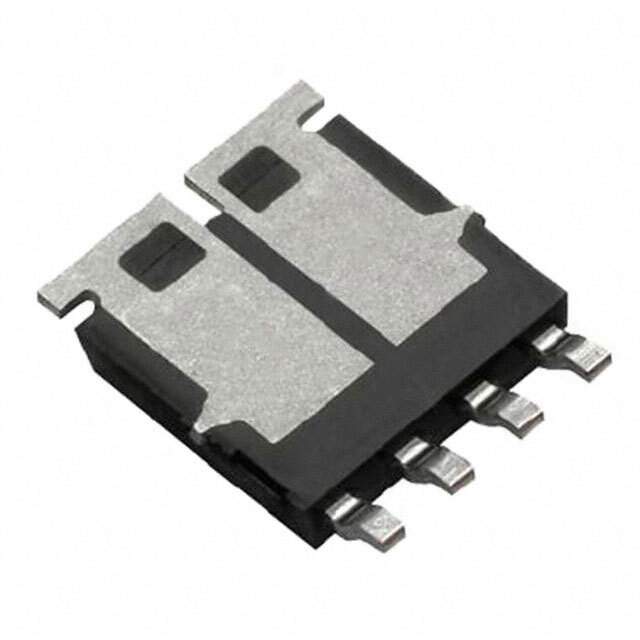

The SQJ960EP has a drain-source voltage (VDS) rating of 80V and a continuous drain current (ID) rating of up to 80A. The typical on-resistance (RDS(on)) is very low, contributing to high efficiency. It features fast switching speeds and a low gate charge. The device is usually packaged in a PowerPAK® SO-8 single package for efficient heat dissipation. The operating junction temperature range is typically from -55°C to +175°C. The SQJ960EP is designed to minimize conduction and switching losses, making it an excellent choice for high-efficiency power conversion applications.
