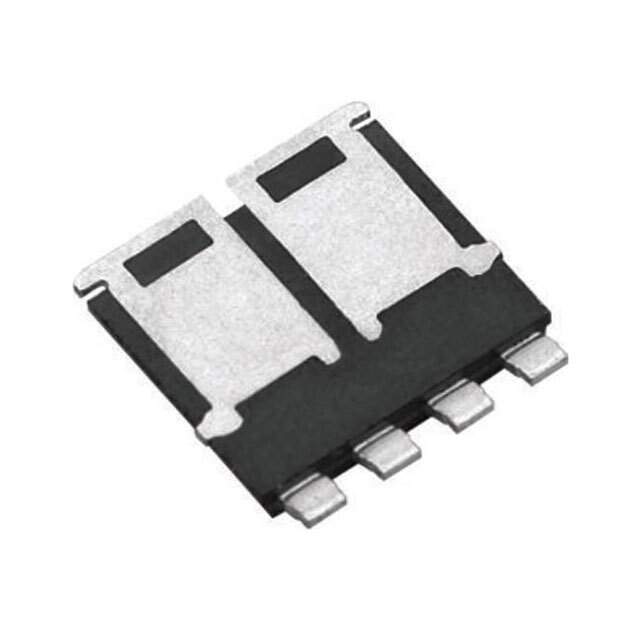

Same model may have multiple batches, images only for reference.

SQJQ906E-T1_GE3

Name: SQJQ906E-T1_GE3
Brand: Vishay
SKU: 1278531
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SQJQ906E-T1_GE3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Datasheet	SQJQ906E-T1_GE3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Transistors - FETs, MOSFETs - Arrays
Mfr	Vishay Siliconix
Series	Automotive, AEC-Q101, TrenchFET®
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	95A (Tc)
Rds On (Max) @ Id, Vgs	3.3mOhm @ 5A, 10V
Vgs(th) (Max) @ Id	3.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	3600pF @ 20V
Power - Max	50W
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting	SMD (SMT)
Package / Case	PowerPAK® 8 x 8 Dual
Supplier Device Package	PowerPAK® 8 x 8 Dual
Base Product Number	SQJQ906
Other Names	SQJQ906E-T1_GE3DKR,SQJQ906E-T1_GE3,SQJQ906E-T1_GE3TR,SQJQ906E-T1_GE3CT
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
Win Source Part Number	1278531-SQJQ906E-T1_GE3
Ultra Librarian 3D Model	Ultra Librarian SQJQ906E-T1_GE3 CAD Model

Alternative Products

Description

The SQJQ906E-T1_GE3 is a dual N-Channel MOSFET array designed for use in automotive applications. It is manufactured by Vishay Siliconix and has a Win Source Part Number of 1278531.

Drain to Source Voltage: 40V
Continuous Drain Current: 95A @ 25°C
Rds On (Max) @ Id, Vgs: 3.3mOhm @ 5A, 10V
Gate Charge (Qg): 42nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 3600pF @ 20V
Operating Temperature Range: -55°C to 175°C (TJ)
