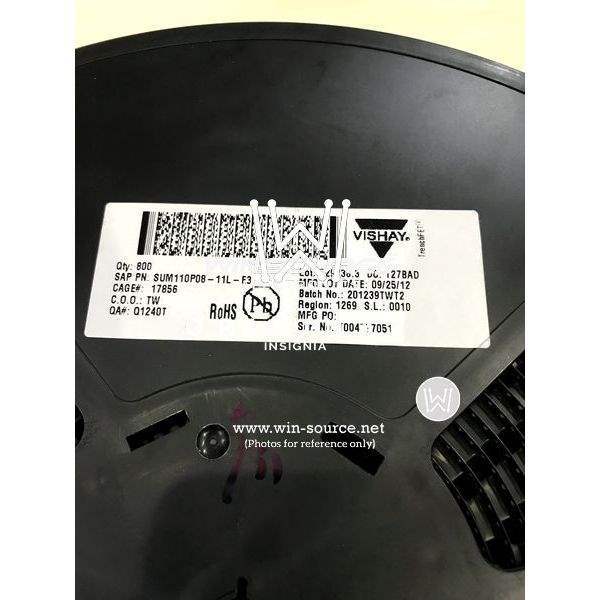

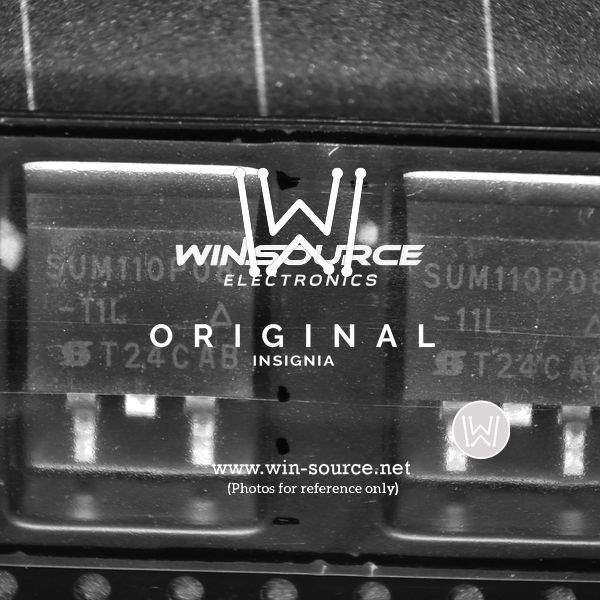

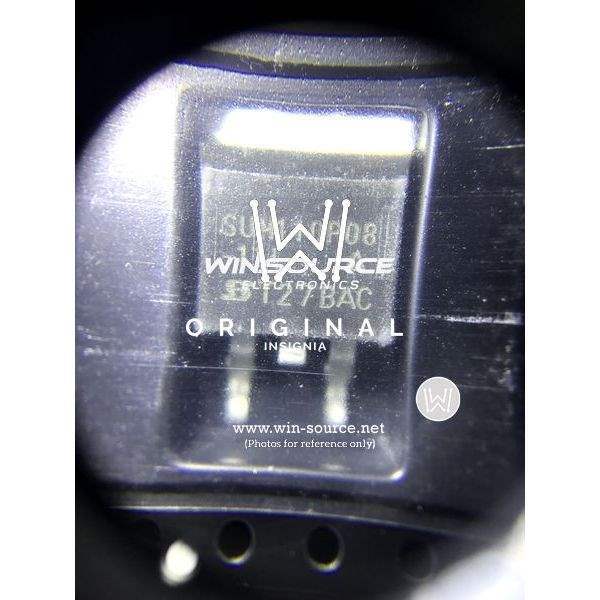

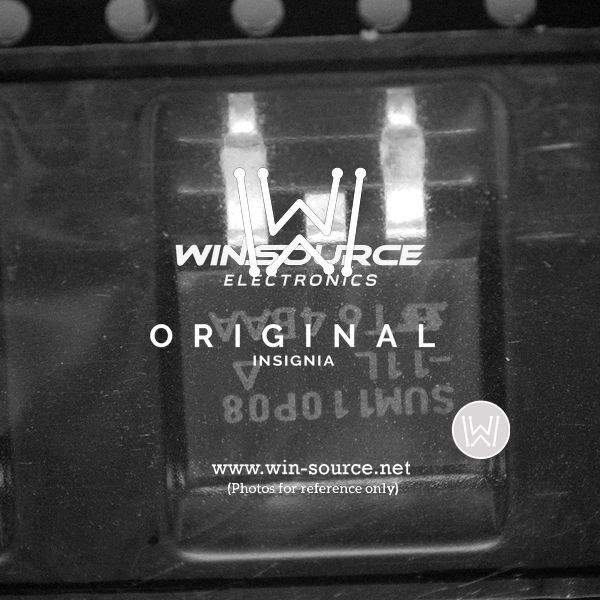

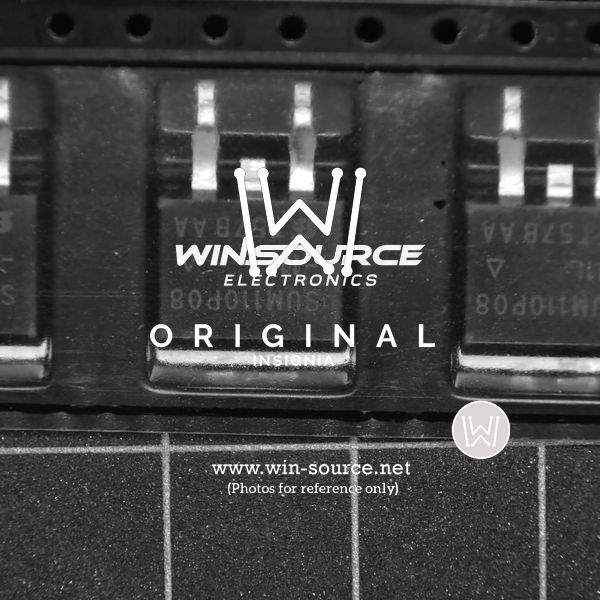

Same model may have multiple batches, images only for reference.

SUM110P08-11L-E3

Name: SUM110P08-11L-E3
Brand: Vishay
SKU: 520994
Availability: InStock
Rating: 4.93 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	SUM110P08-11L-E3
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET P-CH 80V 110A D2PAK
Datasheet	SUM110P08-11L-E3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Polarity	P-Channel
Technology	MOSFET
Drain-Source Breakdown Voltage	80V
Continuous Drain Current at 25°C	110A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Gate-Source Threshold Voltage	3V @ 250μA
Max Gate Charge	270nC @ 10V
Max Input Capacitance	10850pF @ 40V
Maximum Gate-Source Voltage	±20V
Power Dissipation (Max)	13.6W (Ta), 375W (Tc)
Maximum Rds On at Id,Vgs	11.2 mOhm @ 20A, 10V
Temperature Range - Operating	-55°C to 175°C (TJ)
Mounting	SMD (SMT)
Case / Package	TO-263 (D2Pak)
Dimension	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Win Source Part Number	1104114-SUM110P08-11L-E3
Family Name	SUM110P08-11L
Introduction Date	December 02, 2005
ECCN	EAR99
Country of Origin	China
Halogen Free	Compliant
Estimated EOL Date	2024
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Industrial
Ultra Librarian 3D Model	Ultra Librarian SUM110P08-11L-E3 CAD Model

Alternative Products

Description

The Vishay SUM110P08-11L-E3 MOSFET is a P-Channel power MOSFET that can handle a maximum power dissipation of 13.6W (Ta), 375W (Tc).

Drain-Source Breakdown Voltage: 80V
Continuous Drain Current: 110A (Tc)
Gate-Source Threshold Voltage: 3V @ 250μA
Maximum Gate Charge: 270nC @ 10V
Maximum Input Capacitance: 10850pF @ 40V
Maximum Rds On at Id,Vgs: 11.2 mOhm @ 20A, 10V
Application: Industrial
Popularity: High
Supply and Demand: Balance
