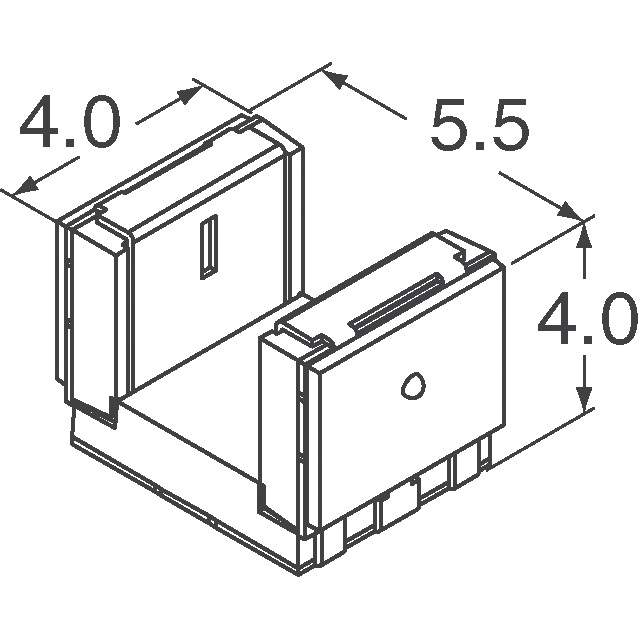

TCUT1300X01 Real Image
Same model may have multiple batches, images only for reference.

TCUT1300X01

Part No TCUT1300X01
Manufacturer Vishay
Catalog Optical Sensors - Photointerrupters - Slot Type - Transistor Output
Description Subminiature Dual Channel Transmissive Optical Sensor with
Datasheet
TCUT1300X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Sensing Distance 0.118" (3mm)
Sensing Method Transmissive
Output Configuration Phototransistor
Current - DC Forward (If) (Maximum) 25mA
Current - Collector (Ic) (Maximum) 20mA
Voltage - Collector Emitter Breakdown (Maximum) 20V
Response Time 20μs, 30μs
Operating Temperature Range -40°C ~ 105°C
Mounting SMD
Package 6-SMD
Type Unamplified
Win Source Part Number 1265715-TCUT1300X01
Manufacturer Homepage www.vishay.com
Family Name TCUT1300X01
Introduction Date May 20, 2007
ECCN EAR99
Country of Origin Malaysia, Philippines
Estimated EOL Date 2022
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2k pcs
Ultra Librarian 3D Model Ultra Librarian TCUT1300X01 CAD Model

Description

The Vishay Semiconductor Opto Division TCUT1300X01 is an unamplified phototransistor that operates @ a sensing distance of 0.118 inches (3mm). The supply and demand status of the product is balanced.

  • Package: 6-SMD
  • Mounting Technology: SMD
  • Response Time: 20μs and 30μs
  • Output Configuration: phototransistor
  • Operating Temperature Range: -40°C to 105°C
  • Current DC Forward (If): 25mA
  • Current Collector (Ic): 20mA
  • Voltage Collector-Emitter Breakdown: 20V
