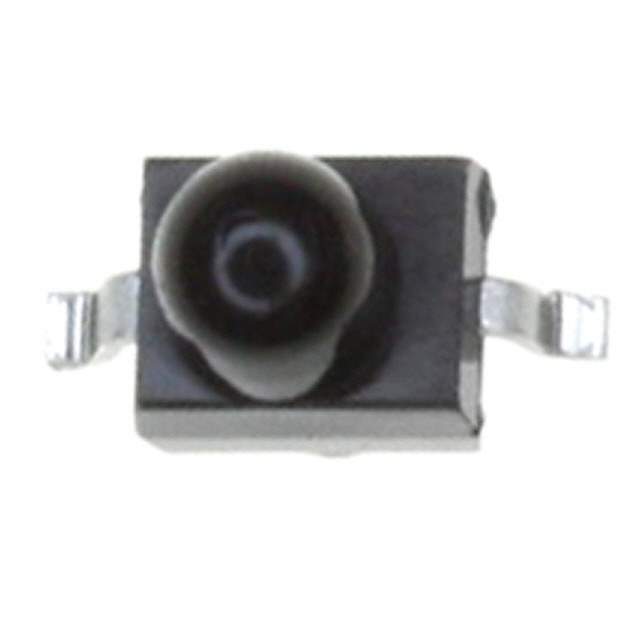

TEMD1020 Real Image
Same model may have multiple batches, images only for reference.

TEMD1020

Part No TEMD1020
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 940NM SMD / Silicon PIN Photodiode, RoHS Compliant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Wavelength 940nm
Spectral Range 790nm ~ 1050nm
Diode Type PIN
Responsivity at nm 0.55 A/W at 950nm
Response Time 4ns
Voltage - DC Reverse (Vr) (Maximum) 60V
Current - Dark (Typ) 1nA
Active Area 0.23mm²
Viewing Angle 30°
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Pack Quantity 1,000
MSL Level 3 (168 Hours)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801852-TEMD1020
Ultra Librarian 3D Model Ultra Librarian TEMD1020 CAD Model

Description

The Vishay Semiconductor Opto Division TEMD1020 is a PIN diode from Vishay Semiconductor Opto Division.

  • Wavelength: 940nm
  • Spectral Range: 790nm to 1050nm
  • Response Time: 4ns
  • Viewing Angle: 30 degrees
  • Dark Current: 1nA
  • Active Area: 0.23mm²
  • Reverse Voltage: 60V Max
  • Operating Temperature: -40°C to 85°C
  • Packaging: Reel
  • Supply/Demand: Sufficient
  • Manufacturer Pack Quantity: 1000
  • MSL Level: 3 (168 hours)
  • Responsivity @ 950nm: 0.55 A/W
