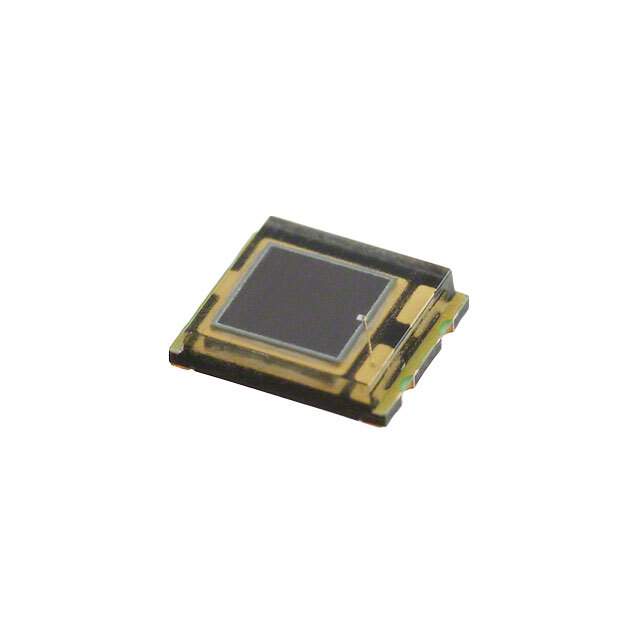

TEMD5080X01 Real Image
Same model may have multiple batches, images only for reference.

TEMD5080X01

Part No TEMD5080X01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description Silicon PIN Photodiode
Datasheet
TEMD5080X01 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay Semiconductor Opto Division
Packaging Reel - TR
Wavelength 940nm
Color - Enhanced Blue
Spectral Range 350nm ~ 1100nm
Diode Type PIN
Response Time 40ns
Voltage - DC Reverse (Vr) (Maximum) 25V
Current - Dark (Typ) 2nA
Active Area 7.7mm2
Viewing Angle 130°
Operating Temperature Range -40°C ~ 100°C
Mounting SMD
Package 2-SMD, No Lead
Win Source Part Number 1266722-TEMD5080X01
Manufacturer Homepage www.vishay.com
Popularity Medium
Supply and Demand Status Limited
Family Name TEMD5080X01
Introduction Date March 11, 2009
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian TEMD5080X01 CAD Model

Description

The TEMD5080X01 is a surface mount PIN photodiode from Vishay Semiconductor Opto Division.

  • Application: It is designed for use in ambient light sensing applications, such as backlighting control for LCD displays and automatic lighting control for streetlights.
  • Peak Sensitivity Wavelength: 940 nm
  • Response Time: 40 ns
