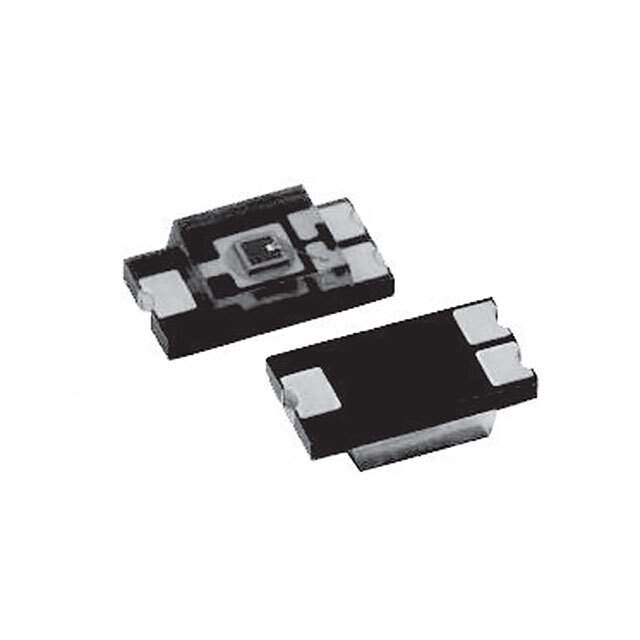

TEMD6010FX01 Real Image
Same model may have multiple batches, images only for reference.

TEMD6010FX01

Part No TEMD6010FX01
Manufacturer Vishay
Catalog Optical Sensors - Photodiodes
Description SENSOR PHOTODIODE 540NM SMD / Ambient Light Sensor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay Semiconductor Opto Division
Packaging Reel
Wavelength 540nm
Spectral Range 430nm ~ 610nm
Diode Type PIN
Voltage - DC Reverse (Vr) (Maximum) 16V
Current - Dark (Typ) 2nA
Active Area 0.27mm2
Viewing Angle 120°
Temperature Range - Operating -40°C ~ 100°C
Mounting Style SMD
Manufacturer Pack Quantity 3,000
MSL Level 3 (168 Hours)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806462-TEMD6010FX01
Ultra Librarian 3D Model Ultra Librarian TEMD6010FX01 CAD Model

Description

The TEMD6010FX01 is a PIN diode.

  • Maximum Reverse Voltage: 16V
  • Dark Current: 2nA
  • Viewing Angle: 120°
  • Spectral Range: 430nm to 610nm
  • Response Time: Not Specified
  • Active Area: 0.27mm2
  • Packaging: Reel
  • Manufacturer Pack Quantity: 3,000
  • Operating Temperature Range: -40°C to 100°C
  • Popularity: Medium
  • Supply and Demand Status: Balanced
