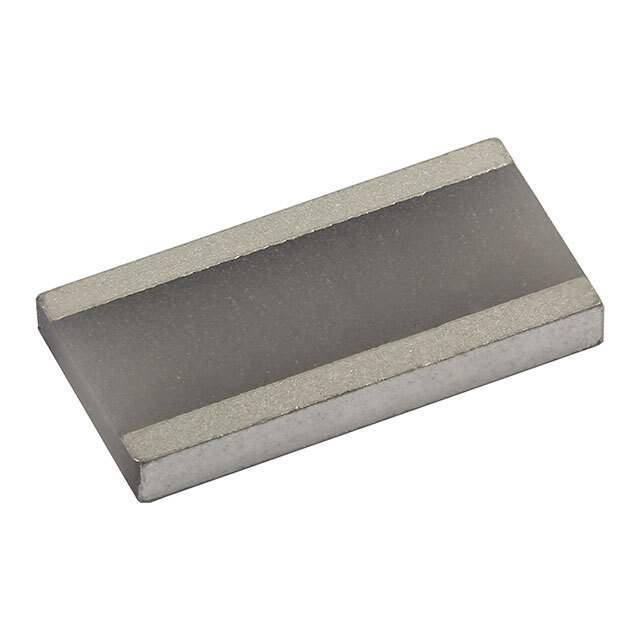

THJP0612ABT1 Vishay Dale Thin Film
Same model may have multiple batches, images only for reference.

THJP0612ABT1

Part No THJP0612ABT1
Manufacturer Vishay
Catalog Thermal - Pads, Sheets
Description THERMAL JUMPER 0612 30 MIL LEAD
Datasheet
THJP0612ABT1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1203656-THJP0612ABT1
Manufacturer Vishay Dale Thin Film
Category Fans, Thermal Management -Thermal -Pads, Sheets
Series ThermaWick™
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Usage Heat Transfer
Type Thermal Bridge Jumper
Material Aluminum Nitride
Base Product Number THJP
Thickness 0.0030" (0.076mm)
Ultra Librarian 3D Model Ultra Librarian THJP0612ABT1 CAD Model

Description

THJP surface mount chips are designed to provide an electrically isolated thermal conductive pathway to a ground plane or heat sink while maintaining the electrical isolation of the device. The devices are constructed with aluminum nitride substrates in both SnPb and Pb-free wraparound termination styles. The low capacitance of the device makes them an excellent choice for high frequency and thermal ladder applications. Custom sizes available.
