Same model may have multiple batches, images only for reference.

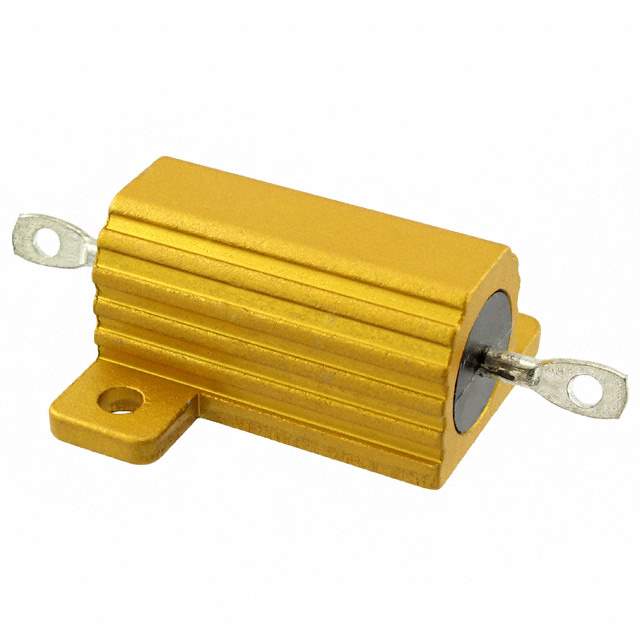

TMC02515R00FE02 Real Image
Same model may have multiple batches, images only for reference.

TMC02515R00FE02

Part No TMC02515R00FE02
Manufacturer Vishay
Catalog Chassis Mount Resistors
Description RES CHAS MNT 15 OHM 1% 25W / 15 Ohms ±1% 25W Wirewound Chassis Mount Resistor
Datasheet
TMC02515R00FE02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chassis Mount Resistors
Mfr Vishay Dale
Series TMC
Package Bulk
Resistance 15 Ohms
Tolerance ±1%
Power (Watts) 25W
Composition Wirewound
Temperature Coefficient ±20ppm/°C
Temperature Range - Operating -55°C ~ 250°C
Features Moisture Resistant
Coating, Housing Type Aluminum
Mounting Feature Flanges
Size / Dimension 1.062" L x 1.080" W (26.97mm x 27.43mm)
Height - Seated (Max) 0.561" (14.25mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Standard Package 5
MSL Level Not Applicable
ECCN EAR99
HTSUS 8533.29.0000
Win Source Part Number 1350972-TMC02515R00FE02
Ultra Librarian 3D Model Ultra Librarian TMC02515R00FE02 CAD Model

Description

The TMC series chassis mount resistor is a wirewound type resistor with a resistance of 15 Ohms and a power rating of 25W. The manufacturer is Vishay Dale.

  • Resistance: 15 Ohms
  • Power Rating: 25W
  • Tolerance: ±1%
  • Temperature Coefficient: ±20ppm/°C
  • Size: 1.062" L x 1.080" W (26.97mm x 27.43mm)
  • Height: 0.561" (14.25mm)
  • Feature: Moisture-Resistant
  • Mounting Type: Flange Mount
  • Coating: Aluminum
  • Package/Case: Box Axial
  • Temperature Range: -55°C to 250°C
