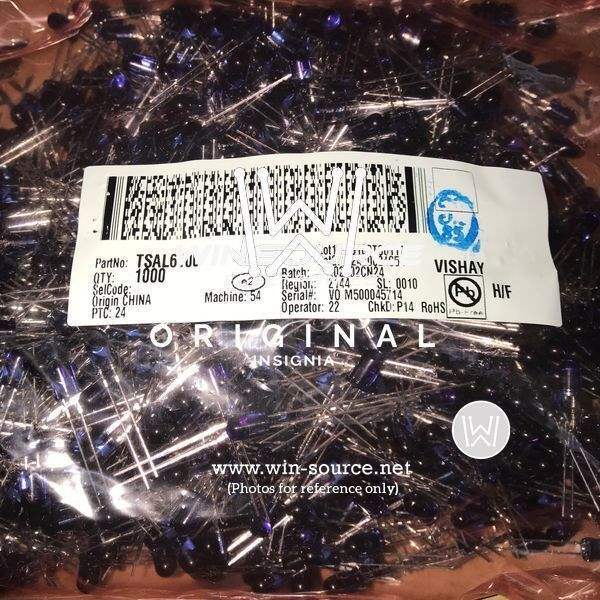

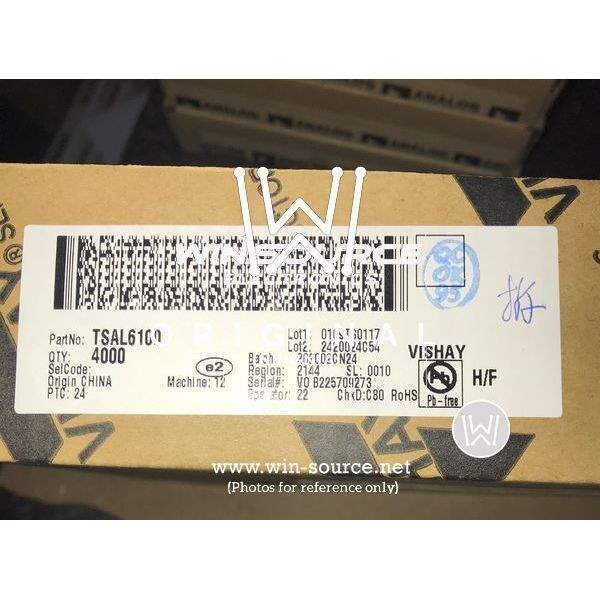

TSAL6100 Real Image TSAL6100 real image TSAL6100 label picture
Same model may have multiple batches, images only for reference.
TSAL6100 Real Image TSAL6100 real image TSAL6100 label picture
TSAL6100 Real Image TSAL6100 real image TSAL6100 label picture
Same model may have multiple batches, images only for reference.

TSAL6100

Part No TSAL6100
Manufacturer Vishay
Catalog Infrared, UV, Visible Emitters
Description EMITTER IR 940NM 100MA RADIAL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Vishay
Standard Package 4000
Category Optoelectronics
Family Infrared UV Visible Emitters
Packaging Bulk
Type IR
Current - DC Forward (If) (Max) 100mA
Radiant Intensity (Ie) Min @ If 80mW/sr @ 100mA
Wavelength 940nm
Voltage - Forward (Vf) (Typ) 1.35V
Viewing Angle 20°
Orientation Top View
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting Style Through Hole
Package Radial 5mm Dia (T 1 3/4)
Catalog A850 Series
Win Source Part Number 095363-TSAL6100
Family Name TSAL6100
Introduction Date December 17, 1999
ECCN EAR99
Country of Origin China, Philippines
Halogen Free Compliant
Estimated EOL Date 2023
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in LED Lighting, Sensing & Instrumentation, Industrial, HVAC
Ultra Librarian 3D Model Ultra Librarian TSAL6100 CAD Model

Description

The Vishay TSAL6100 is an infrared UV visible emitter used in LED lighting, sensing and instrumentation, industrial, and HVAC applications.

  • Manufacturer: Vishay
  • Product Name: TSAL6100
  • Application: LED lighting, sensing and instrumentation, industrial, and HVAC applications
  • Radiant Intensity (Ie) minimum: 80mW/sr @ 100mA
  • Viewing Angle: 20°
  • Current DC Forward (If) (max): 100mA
  • Voltage Forward (Vf) (typ): 1.35V
  • Package: radial 5mm dia (T 1 3/4)
  • Standard Package: 4000
  • Supply and Demand Status: sufficient.
