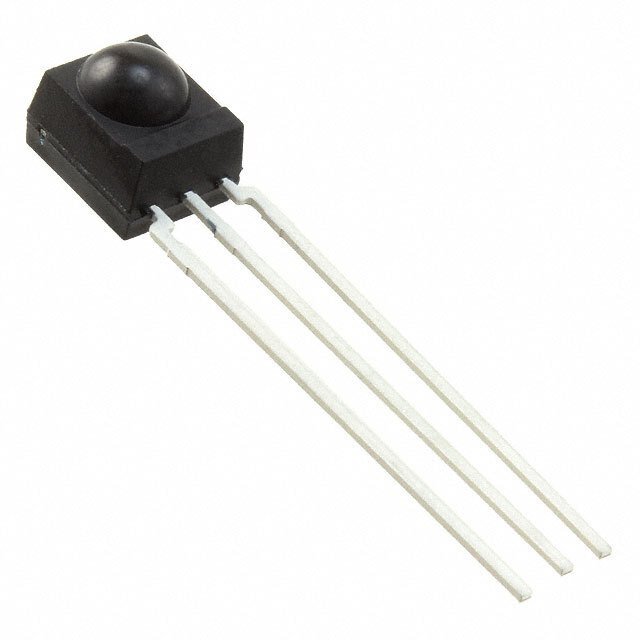

TSOP2438SB1

Part No TSOP2438SB1
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description IC IR RCVR MODULE 38KHZ
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors,Transducers
Family Optical Sensors - Photo Detectors - Remote Receiver
Manufacturer Vishay-Semiconductor-Opto-Division
Sensing Distance 45m
B.P.F. Center Frequency 38.0kHz
Operating Supply Voltage 2.5 V ~ 5.5 V
Current - Supply 0.7mA
Orientation Side View
Mounting Style Through Hole
Operating Temperature Range -25°C ~ 85°C (TA)
Win Source Part Number 004596-TSOP2438SB1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TSOP2438SB1 CAD Model

Description

The Vishay TSOP2438SB1 is an optical sensor that is commonly used in remote control systems.

  • Sensing Distance: 45m
  • Operating Voltage: 2.5V to 5.5V
  • Current Rating: 0.7mA
  • B.P.F. Center Frequency: 38.0kHz
  • Orientation: side view
  • Operating Temperature Range: -25°C to 85°C
