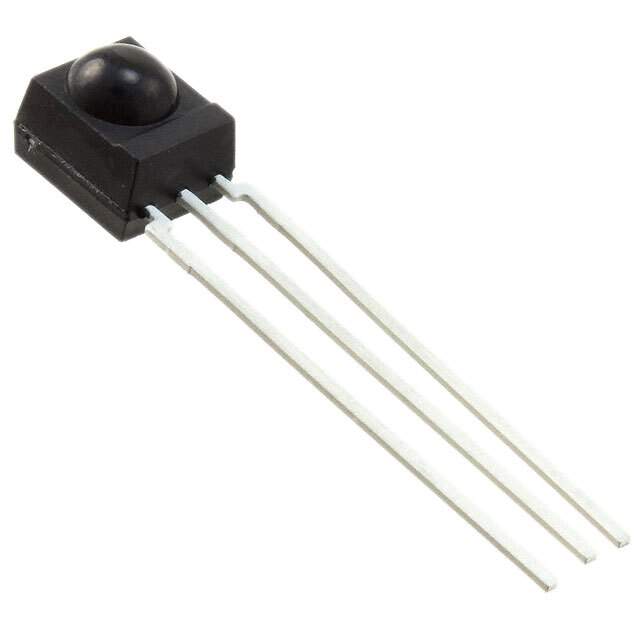

The TSOP34336SS1F is a Vishay IR receiver module designed for infrared remote control systems. The device integrates a photodiode, a preamplifier, and an IR filter in one compact package. This receiver is designed to detect IR signals modulated at a carrier frequency of 36 kHz.

Applications

• Infrared remote control systems
• Consumer electronics such as TVs, DVD players, and set-top boxes
• Home automation systems

Features

• Photo detector and preamplifier in one package
• Internal filter for PCM frequency
• Low supply current
• TTL and CMOS compatibility
• Supply voltage: 2.5 V to 5.5 V
• Carrier frequency: 36 kHz

Benefits

• Easy to use: requires minimal external components
• Reliable performance
• Cost-effective solution

Additional Details

The TSOP34336SS1F operates within a supply voltage range of 2.5 V to 5.5 V. Its output is active low. The internal filter effectively suppresses noise and unwanted IR signals, enhancing the reliability of the remote control system. The device is RoHS compliant.
