Same model may have multiple batches, images only for reference.

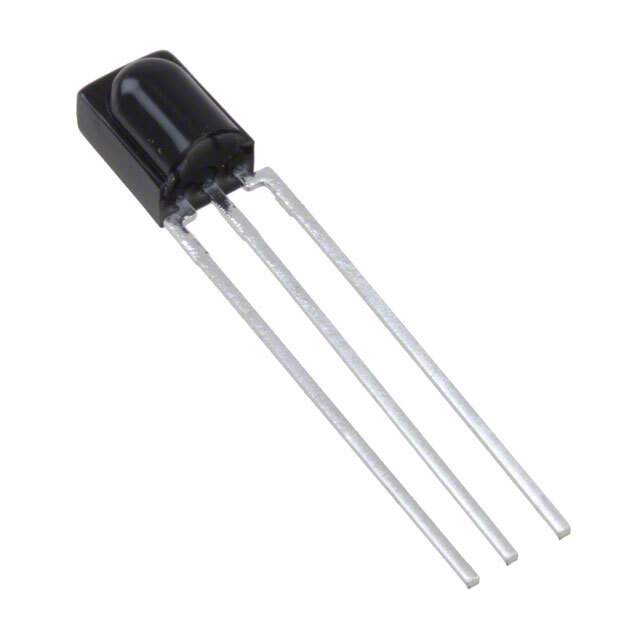

TSOP38236 Real Image
Same model may have multiple batches, images only for reference.

TSOP38236

Part No TSOP38236
Manufacturer Vishay
Catalog Optical Sensors - Photo Detectors - Remote Receiver
Description PH.MODULE 36KHZ S.VIEW
Datasheet
TSOP38236 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Vishay
Packaging Bulk
Status Active
Sensing Distance 45m
Carrier Frequency 36.0kHz
Supply Voltage - Operating 2.5 V to 5.5 V
Operating Supply Current 450μA
Orientation Side View
Mounting Through Hole
Temperature Range - Operating -25°C to 85°C (TA)
Win Source Part Number 057163-TSOP38236
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSOP38236 CAD Model

Description

The Vishay TSOP38236 is a sensor designed for use in transducers.

  • Package: bulk
  • Mounting: through hole
  • Sensing Distance: 45m
  • Operating Temperature Range: -25°C to 85°C (TA)
  • Carrier Frequency: 36.0kHz
  • Operating Supply Voltage: 2.5V to 5.5V
  • Popularity: medium
  • Supply and Demand Status: limited
