The UH8JT is a fast recovery rectifier diode manufactured by Vishay. These diodes are designed for applications requiring efficient and rapid switching, commonly used in power supplies and other high-frequency circuits.

Applications

• Switch Mode Power Supplies (SMPS): Secondary side rectification in high-frequency SMPS.
• Continuous Current Mode (CCM) Power Factor Correction (PFC): Boost diode in PFC circuits.
• Freewheeling Diode: Protection of inductive loads by providing a path for current when the switching device is turned off.
• DC-DC Converters: Output rectification in DC-DC converters.
• Lighting applications: Rectification in LED lighting circuits.

Features

• Ultrafast recovery time: Reduces switching losses and improves efficiency.
• Low forward voltage drop: Minimizes power dissipation.
• High surge current capability: Can withstand high surge currents without damage.
• High reliability: Robust design for stable and consistent performance.
• RoHS compliant: Complies with environmental regulations.

Benefits

• Increased efficiency: Reduces power loss in switching applications.
• Improved circuit performance: Fast recovery reduces noise and improves stability.
• Reliable operation: Robust design ensures long-term reliability.
• Simplified design: Easy to integrate into new and existing circuits.
• Reduced heat generation: Low forward voltage drop minimizes heat dissipation.

Additional Details

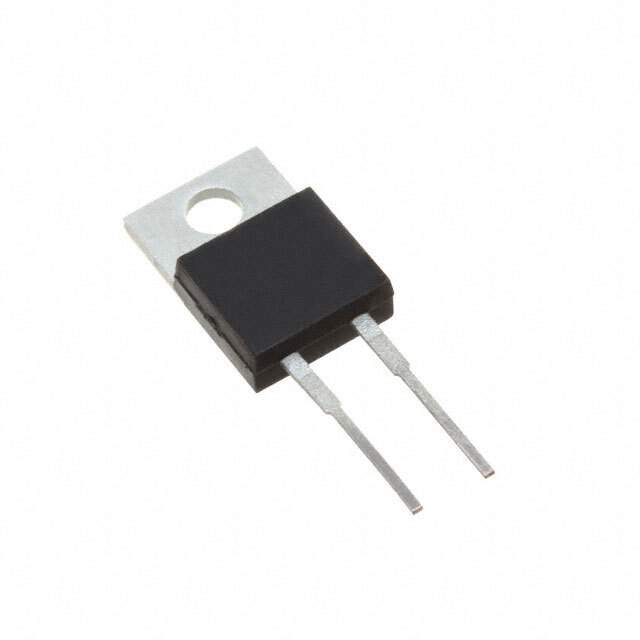

The UH8JT diode typically has a maximum reverse voltage of 600V and a forward current rating of 8A. Its ultrafast recovery time, generally around 35ns, minimizes switching losses and improves efficiency in high-frequency applications. The low forward voltage drop contributes to reduced power dissipation, leading to cooler operation and improved overall performance. This diode is commonly available in a through-hole package, such as a TO-220AC, allowing for efficient heat dissipation. Proper heat sinking may be necessary depending on the application's current and ambient temperature conditions. These diodes excel in circuits where rapid switching is crucial, such as in modern power supplies where higher frequencies are employed to shrink component sizes and enhance power density.

The UH8JT offers improved performance in terms of power efficiency, particularly in systems running at higher frequencies. By ensuring that reverse recovery losses are kept low, this diode aids in reducing EMI, facilitating compliance in many applications. The device is suitable for use in environments that demand long-term reliability and stable operation. Selection requires careful consideration of the application's reverse voltage, forward current, and operating temperature requirements to remain within the diode's specified limits and achieve the anticipated performance and lifespan. Correct implementation requires consideration of PCB layout to minimize parasitic inductances and capacitances, optimizing switching performance.
