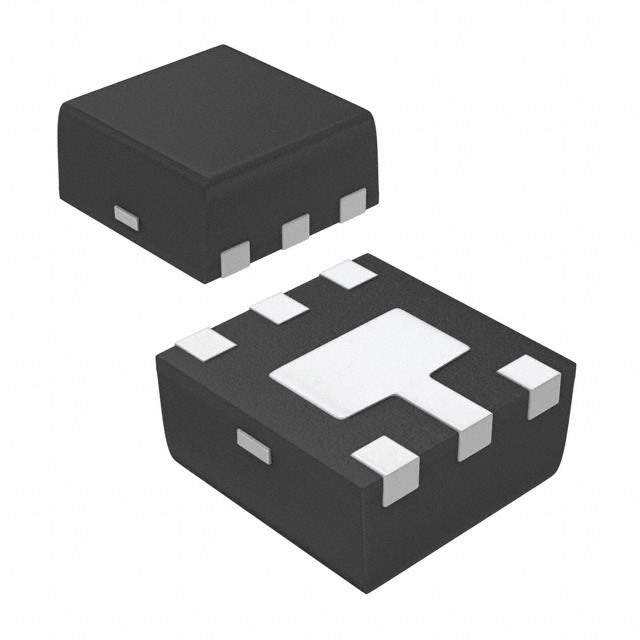

The VBUS054B-HSF-GS08 is a bidirectional symmetrical (BiSy) single-line ESD protection device from Vishay. This device is designed to protect sensitive electronic components from damage due to electrostatic discharge (ESD) and other transient voltage events. It is particularly well-suited for protecting high-speed data lines and interfaces in a variety of applications.

Applications

• USB Interfaces: Protection for USB 2.0, USB 3.0, and USB 3.1 data lines in computers, peripherals, and mobile devices.
• HDMI Interfaces: Safeguarding HDMI ports in TVs, monitors, and set-top boxes.
• DisplayPort Interfaces: Protecting DisplayPort connections in computers and display devices.
• Ethernet Ports: ESD protection for Ethernet interfaces in network devices and computers.
• Antenna Protection: Protecting RF front-ends in wireless communication devices.
• General I/O Ports: Protecting any sensitive I/O port from ESD strikes.

Features

• Bidirectional and Symmetrical ESD Protection: Provides equal protection against positive and negative ESD strikes.
• Low Clamping Voltage: Minimizes stress on protected components during ESD events.
• Low Capacitance: Ensures minimal signal degradation on high-speed data lines.
• Small Package Size: Compact footprint allows for easy integration into space-constrained applications.
• Lead-Free and RoHS Compliant: Environmentally friendly and compliant with industry regulations.
• High ESD Withstand Voltage: Capable of withstanding high levels of ESD without failure.
• Fast Response Time: Quickly clamps transient voltages to protect downstream circuitry.

Benefits

• Enhanced ESD Protection: Significantly reduces the risk of damage to sensitive components from ESD strikes.
• Improved System Reliability: Protects against transient voltage events, enhancing the overall reliability of the system.
• Minimal Signal Degradation: Low capacitance ensures that high-speed data signals are not significantly affected.
• Simplified Design: Easy to integrate into existing circuit designs.
• Reduced Board Space: Small package size allows for high-density board layouts.
• Cost-Effective Protection: Provides a cost-effective solution for ESD protection.

Additional Details

The VBUS054B-HSF-GS08 utilizes advanced silicon technology to provide robust ESD protection. Key specifications include:

• Breakdown Voltage: Typically around 6V
• Clamping Voltage: Varies with ESD pulse, consult datasheet.
• Capacitance: Typically less than 0.3 pF
• ESD Withstand Voltage: ±15 kV (Air Discharge), ±8 kV (Contact Discharge) according to IEC 61000-4-2
• Leakage Current: Very low leakage current, typically in the nA range.
• Operating Temperature: -55°C to +125°C
• Package: HSF (Halogen-Free Small Flat)

It's crucial to consult the Vishay datasheet for the most accurate and up-to-date specifications before incorporating this device into any design. Proper PCB layout and component placement are essential for optimal ESD protection performance.
