Same model may have multiple batches, images only for reference.

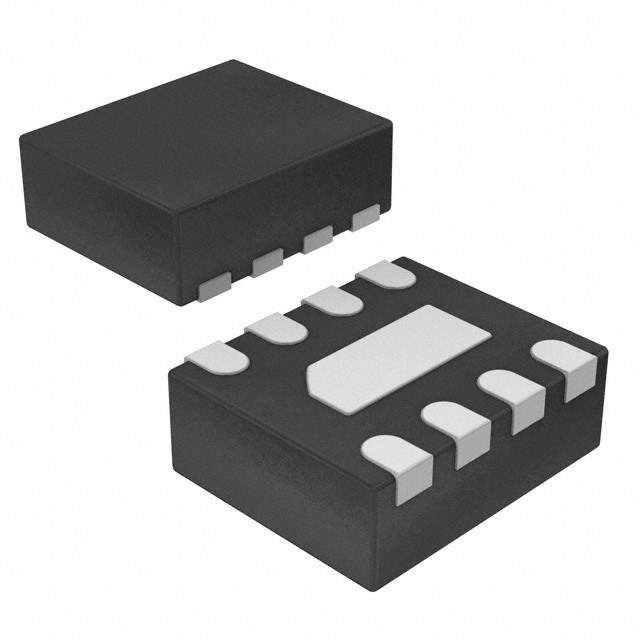

VESD05A8A-HNH-GS08 Real Image
Same model may have multiple batches, images only for reference.

VESD05A8A-HNH-GS08

Part No VESD05A8A-HNH-GS08
Manufacturer Vishay
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC LLP1713-9L
Datasheet
VESD05A8A-HNH-GS08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Estimated Pruduction Lead Time 42 Weeks
Features 13V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount LLP1713-9L
Manufacturer Vishay
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C (TJ)
Mounting Surface Mount
Package 8-UFDFN Exposed Pad
Case / Package LLP1713-9L
Family Name VESD05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number VESD05A8A-HNH-GS08GIDKR, 751-1435-2, VESD05A8A-HNH-GS08GIDKR-ND, VESD05A8A-HNH-GS08GITR, 751-1435-1, VESD05A8A-HNH-GS08GICT, VESD05A8A-HNH-GS08GICT-ND, VESD05A8AHNHGS08, 751-1435-6, VESD05A8A-HNH-GS08GITR-ND
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 902538-VESD05A8A-HNH-GS08
Ultra Librarian 3D Model Ultra Librarian VESD05A8A-HNH-GS08 CAD Model

Description

The Vishay VESD05A8A-HNH-GS08 is a surface mount LLP1713-9L package TVS diode with a 13V clamp and 5A (8/20μs) Ipp.

  • Component Type: Circuit protection
  • Operating Temperature Range: -40°C to 125°C (TJ)
  • REACH: Unaffected
  • Maximum Power Dissipation: 125mW
  • Supply and Demand Balance: Balanced
  • Quantity per Package: 3000 pieces
