Same model may have multiple batches, images only for reference.

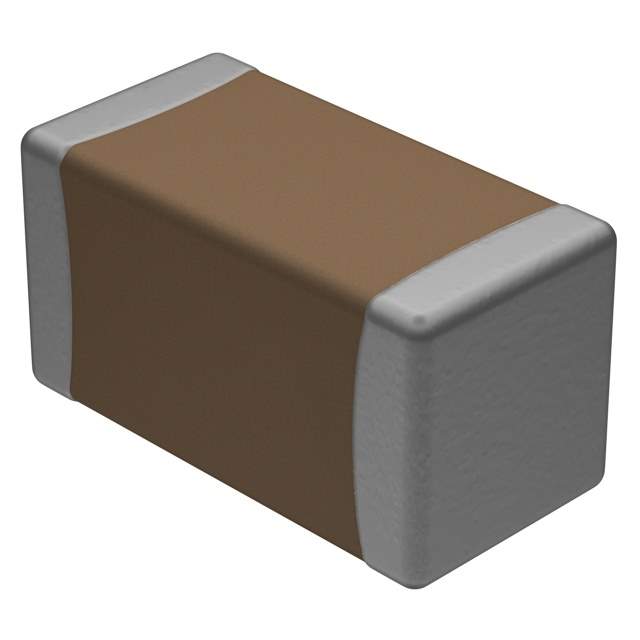

VJ1206Y103KXGAT5Z Real Image
Same model may have multiple batches, images only for reference.

VJ1206Y103KXGAT5Z

Part No VJ1206Y103KXGAT5Z
Manufacturer Vishay
Catalog Ceramic Capacitors
Description CAP CER 10000PF 1KV X7R 1206 / 10000 pF ±10% 1000V (1kV) Ceramic Capacitor X7R 1206 (3216 Metric)
Datasheet
VJ1206Y103KXGAT5Z Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Ceramic Capacitors
Mfr Vishay Vitramon
Series VJ HVArc Guard™
Package Tape & Reel
Capacitance 10000 pF
Tolerance ±10%
Voltage - Rated 1000V (1kV)
Temperature Coefficient X7R
Temperature Range - Operating -55°C ~ 125°C
Features High Voltage
Applications General Purpose
Mounting Type Surface Mount, MLCC
Package / Case 1206 (3216 Metric)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Thickness (Max) 0.067" (1.70mm)
Base Product Number VJ1206
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.24.0020
Other Names 720-1022-2,720-1022-1,720-1022-6
Standard Package 3,000
Win Source Part Number 1014461-VJ1206Y103KXGAT5Z
Ultra Librarian 3D Model Ultra Librarian VJ1206Y103KXGAT5Z CAD Model

Description

The VJ HVArc Guard™ ceramic capacitor is a high voltage component designed for general purpose applications and manufactured by Vishay Vitramon.

  • Capacitance: 10000 pF
  • Voltage Rating: 1000V
  • Temperature Coefficient: X7R
  • Temperature Range: -55°C to 125°C
  • Package: 1206 (3216 Metric)
  • Packaging: Tape and Reel
  • Standard Package: 3,000
  • Series: VJ HVArc Guard™
