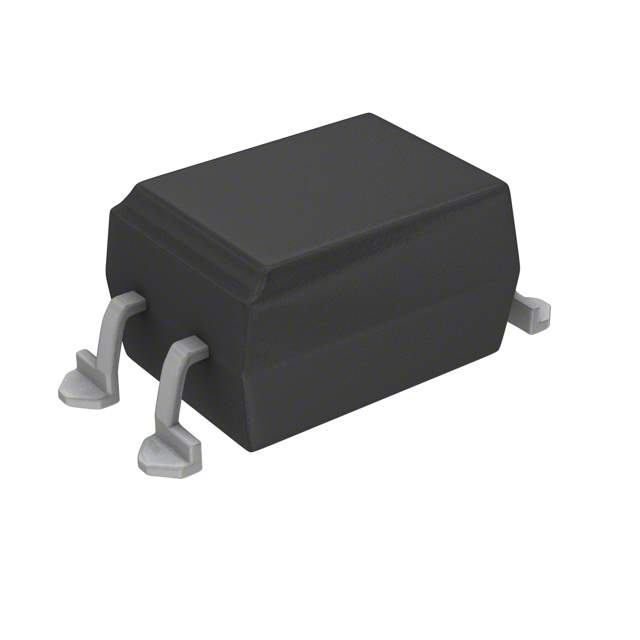

The VO617A-2X017T optoisolator from Vishay Semiconductor Opto Division is a transistor, photovoltaic output type with a 1,000 standard package in tape & reel.

• Mounting Type: SMD (SMT)
• Input Type: DC
• Current - DC Forward (If) (Max): 60 mA
• Voltage - Forward (Vf) (Typ): 1.35V
• Rise / Fall Time (Typ): 2µs, 2µs
• Current - Output / Channel: 50mA
• Channel(s): 1
• Voltage - Isolation: 5300Vrms
• Current Transfer Ratio (Min): 63% @ 5mA
• Voltage - Output (Max): 80V
• Vce Saturation (Max): 400mV
• Current Transfer Ratio (Max): 125% @ 5mA
• Turn On / Turn Off Time (Typ): 3µs, 2.3µs
• Package / Case: 4-SMD, Gull Wing
• Temperature Range - Operating: -55°C to 110°C
