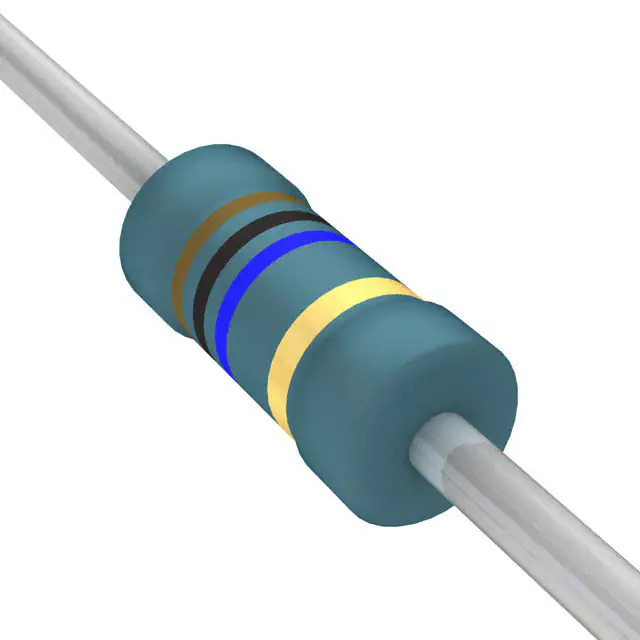

Same model may have multiple batches, images only for reference.

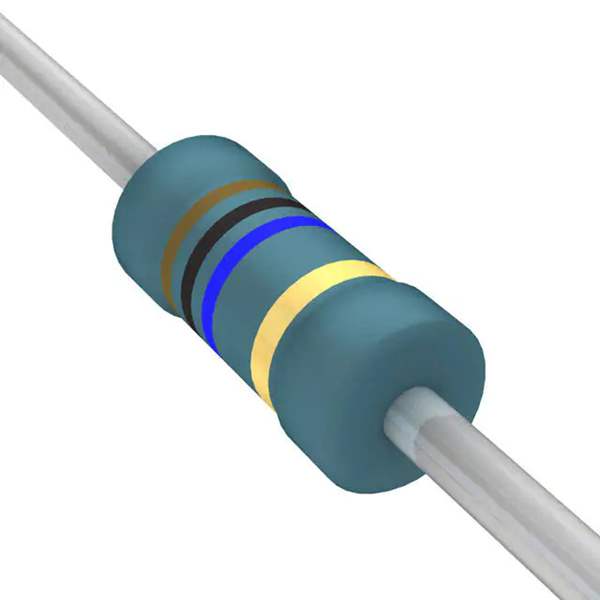

VR25000001005JA100

Name: VR25000001005JA100
Brand: Vishay
SKU: 1374956
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VR25000001005JA100
Manufacturer	Vishay
Catalog	Through Hole Resistors
Description	RES 10M OHM 5% 1/4W AXIAL
Datasheet	VR25000001005JA100 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors - Through Hole Resistors
Mfr	Vishay Beyschlag/Draloric/BC Components
Series	VR25
Product Status	Active
Resistance	10 MOhms
Tolerance	±5%
Power (Watts)	0.25W, 1/4W
Composition	Metal Film
Features	Automotive AEC-Q200, Pulse Withstanding
Temperature Coefficient	±200ppm/°C
Temperature Range - Operating	-55°C ~ 155°C
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.098" Dia x 0.256" L (2.50mm x 6.50mm)
Height - Seated (Max)	-
Number of Terminations	2
Failure Rate	-
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0090
Win Source Part Number	1374956-VR25000001005JA100
Ultra Librarian 3D Model	Ultra Librarian VR25000001005JA100 CAD Model

Alternative Products

Description

The VR25 series resistor from Vishay Beyschlag/Draloric/BC Components is a high-quality through-hole resistor.

Manufacturer: Vishay Beyschlag/Draloric/BC Components
Application: Automotive
Compliance: AEC-Q200
Resistance: 10 MOhms
Power Rating: 0.25W
Tolerance: ±5%
Temperature Coefficient: ±200ppm/°C
Composition: Metal Film
Package: Axial
Feature: Pulse Withstanding
Mounting Type: Through Hole
