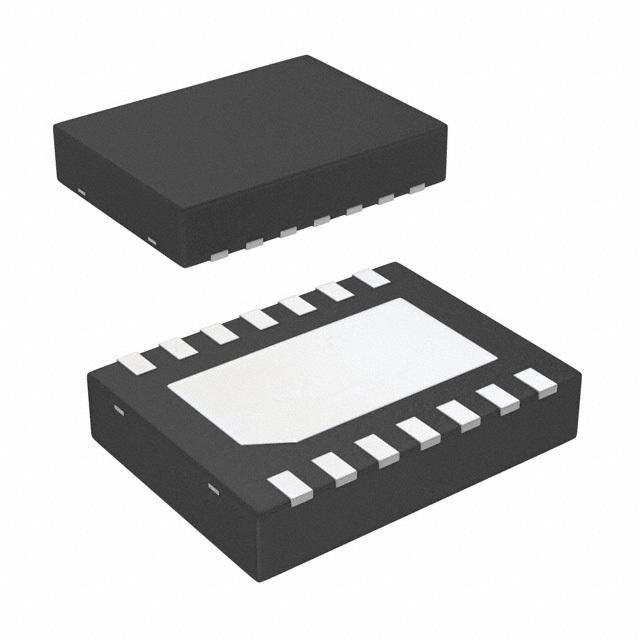

LM3520SD/NOPB Texas Instruments
Same model may have multiple batches, images only for reference.

LM3520SD/NOPB

Part No LM3520SD/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 14WSON
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 2
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 5.5V
Output Voltage 22.5 V to 23.2 V
Channel Output Current 700mA (Switch)
Frequency 1.1MHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 14-WSON (4x3)
Win Source Part Number 101917-LM3520SD/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LM3520SD/NOPB CAD Model

Description

The LM3520SD/NOPB is a high-performance, adjustable current regulator designed and manufactured by Texas Instruments, a renowned global semiconductor company that designs and manufactures analog ICs and embedded processors.

  • Type: High-efficiency, step-up DC-DC converter
  • LEDs Driven: Up to 10 white LEDs in series
  • Package: 10-pin LLP package
  • Input Voltage Range: 2.7V to 5.5V
