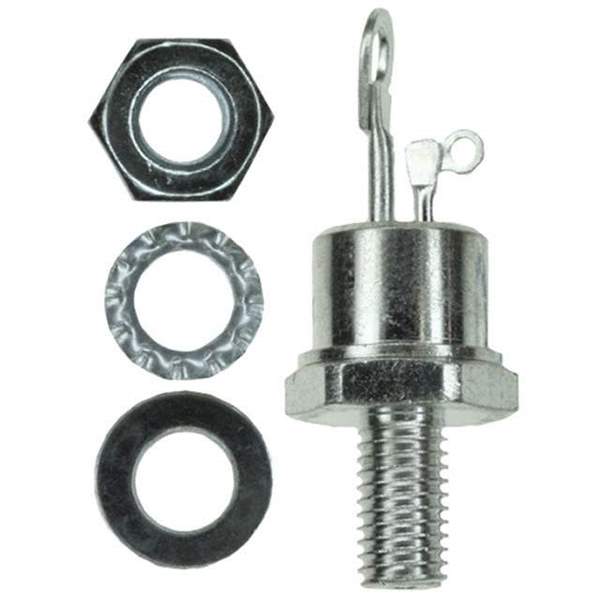

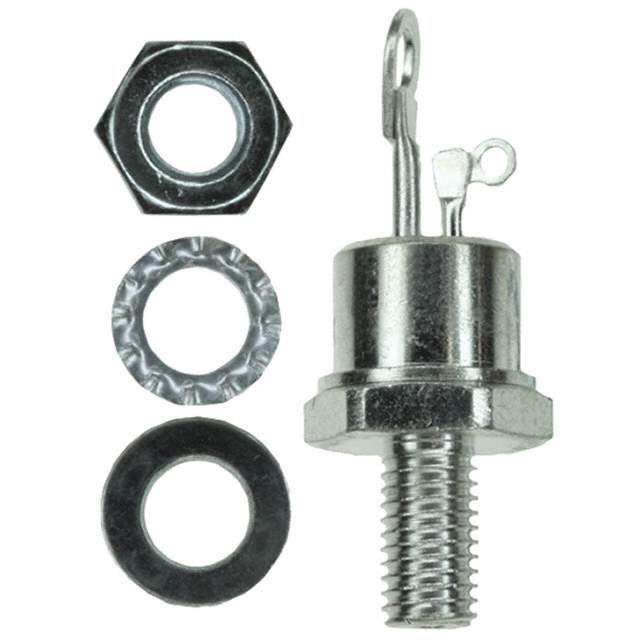

VS-16RIA80 Real Image
Same model may have multiple batches, images only for reference.

VS-16RIA80

Part No VS-16RIA80
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 800V 16A TO48
Datasheet
VS-16RIA80 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 800V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.75V
Current - On State (It (AV)) (Maximum) 16A
Current - On State (It (RMS)) (Maximum) 35A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 340A, 360A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 760569-VS-16RIA80
Popularity Medium
Supply and Demand Status Limited
Family Name 16RIA80
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-16RIA80 CAD Model

Description

The Vishay Semiconductor Diodes Division 16RIA80 SCR is a standard recovery type SCR that is designed for use in discrete semiconductor products.

  • Voltage Off State: 800V
  • Current Non-Rep. Surge: 340A and 360A at 50 and 60 Hz respectively
  • Current On State (It (RMS)): 35A
  • Voltage Gate Trigger (Vgt): 2V
  • Current Gate Trigger (Igt): 60mA
  • Current Hold (Ih): 130mA
  • Voltage On State (Vtm): 1.75V
  • Current On State (It (AV)): 16A
  • Current Off State: 10mA
  • Package: TO-208AA, TO-48-3, stud
  • Mounting: Chassis or Stud
  • Estimated EOL Date: 2026
