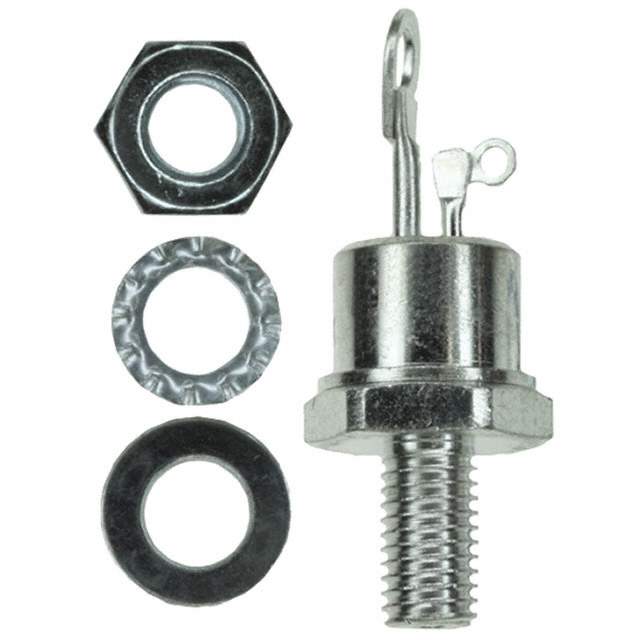

Same model may have multiple batches, images only for reference.

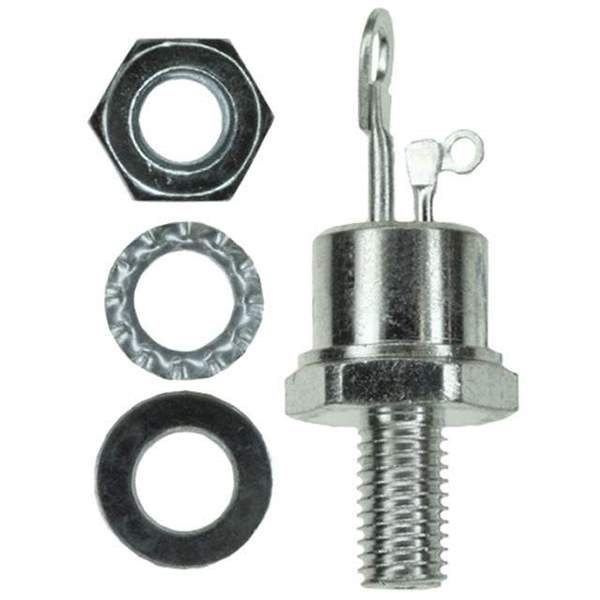

VS-22RIA120 Real Image
Same model may have multiple batches, images only for reference.

VS-22RIA120

Part No VS-22RIA120
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 1200V 22A TO-48
Datasheet
VS-22RIA120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 1200V
Voltage - Gate Trigger (Vgt) (Maximum) 2V
Current - Gate Trigger (Igt) (Maximum) 60mA
Voltage - On State (Vtm) (Maximum) 1.7V
Current - On State (It (AV)) (Maximum) 22A
Current - On State (It (RMS)) (Maximum) 35A
Current - Hold (Ih) (Maximum) 130mA
Current - Off State (Maximum) 10mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 400A, 420A
SCR Type Standard Recovery
Operating Temperature Range -65°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AA, TO-48-3, Stud
Manufacturer Package TO-208AA (TO-48)
Win Source Part Number 761856-VS-22RIA120
Popularity Medium
Supply and Demand Status Limited
Family Name 22RIA120
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-22RIA120 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-22RIA120 is a discrete semiconductor product from Vishay Semiconductor Diodes Division.

  • Package: TO-208AA, TO-48-3, Stud
  • Voltage Rating: 1200V
  • Current Rating: 35A
  • SCR Type: Standard Recovery
  • Maximum Gate Trigger Voltage: 2V
  • Maximum Surge Current: 400A, 420A
  • Current Rating: 22A
  • Maximum Off-State Current: 10mA
  • Estimated EOL Date: 2026
  • Supply and Demand Status: Limited
