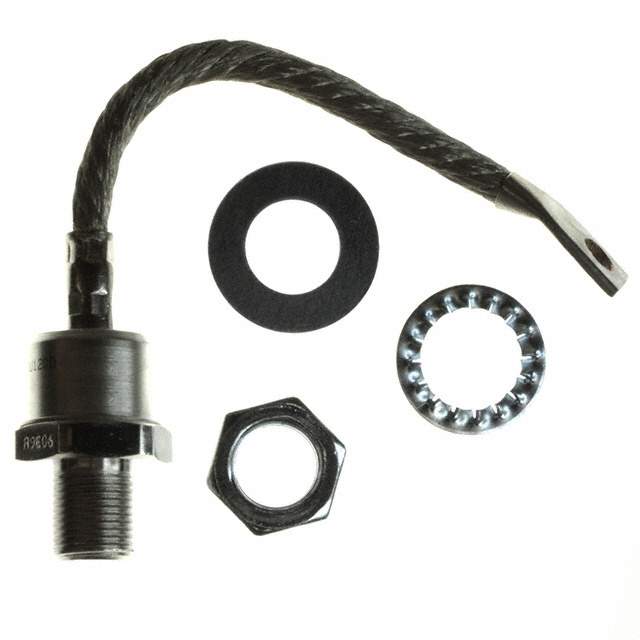

VS-240U100D Real Image
Same model may have multiple batches, images only for reference.

VS-240U100D

Part No VS-240U100D
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1KV 320A DO205 / Diode Standard 1000 V 320A Stud Mount DO-205AB (DO-9)
Datasheet
VS-240U100D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Vishay General Semiconductor - Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1000 V
Current - Average Rectified (Io) 320A
Voltage - Forward (Vf) (Max) @ If 1.33 V @ 750 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 15 mA @ 1000 V
Mounting Stud Mount
Case / Package DO-205AB, DO-9, Stud
Supplier Device Package DO-205AB (DO-9)
Operating Temperature - Junction -40°C ~ 180°C
Base Product Number 240U100
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number *240U100D,240U100D-ND,240U100D
Standard Package 12
Win Source Part Number 1325780-VS-240U100D
Ultra Librarian 3D Model Ultra Librarian VS-240U100D CAD Model

Description

The VS-240U100D from Vishay General Semiconductor is a stud mount rectifier diode that is designed for high power applications.

  • Voltage Rating: 1000 V
  • Average Rectified Current: 320A
  • Forward Voltage: 1.33 V @ 750 A
  • Reverse Leakage Current: 15 mA @ 1000 V
  • Packaging: bulk
  • Units per Standard Package: 12
  • Package Size: DO-205AB (DO-9), with a dimension of 0.67" L x 0.67" W (17.00mm x 17.00mm)
