Same model may have multiple batches, images only for reference.

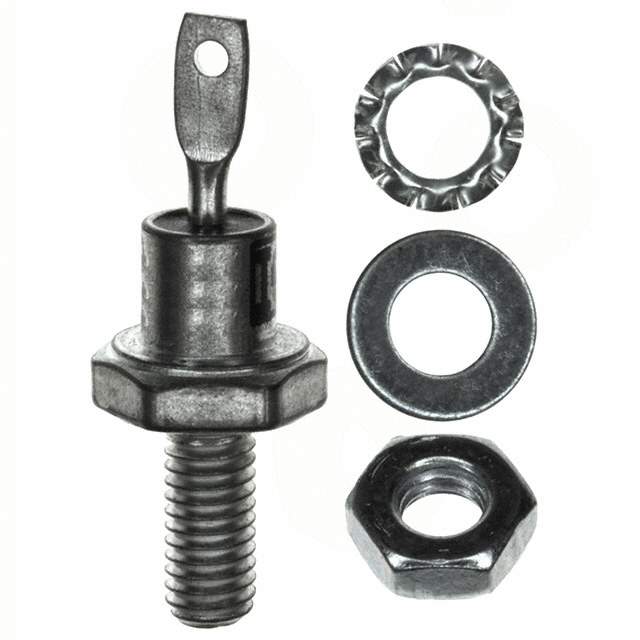

VS-25F120 Real Image
Same model may have multiple batches, images only for reference.

VS-25F120

Part No VS-25F120
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 25A DO203AA  /  Diode Standard 1200 V 25A Chassis, Stud Mount DO-203AA (DO-4)
Datasheet
VS-25F120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 1200 V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1.3 V @ 78 A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 12 mA @ 1200 V
Mounting Type Chassis, Stud Mount
Package / Case DO-203AA, DO-4, Stud
Supplier Device Package DO-203AA (DO-4)
Operating Temperature - Junction -65°C ~ 175°C
Base Product Number 25F120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names 25F120,VS25F120,VS25F120-ND,*25F120,VS-25F120-ND
Standard Package 100
Win Source Part Number 1194226-VS-25F120
Ultra Librarian 3D Model Ultra Librarian VS-25F120 CAD Model

Description

The Vishay General Semiconductor VS-25F120 is a rectifier diode designed for use in a variety of electronic applications.

  • Voltage Reverse (Vr): Up to 1200V
  • Average Rectified Current: 25A
  • Diode Type: Standard
  • Voltage Forward (Vf): 1.3V @ 78A
  • Operating Temperature Range: -65 degrees Celsius to 175 degrees Celsius
