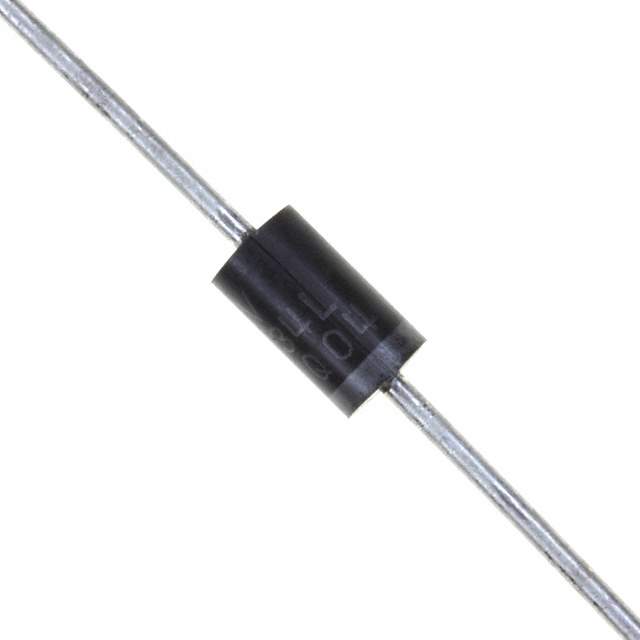

VS-31DQ05 Real Image
Same model may have multiple batches, images only for reference.

VS-31DQ05

Part No VS-31DQ05
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 50V 3.3A C16  /  Diode Schottky 50 V 3.3A Through Hole C-16
Datasheet
VS-31DQ05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Vishay General Semiconductor - Diodes Division
Package Bulk
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 50 V
Current - Average Rectified (Io) 3.3A
Voltage - Forward (Vf) (Max) @ If 620 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 2 mA @ 50 V
Mounting Type Through Hole
Package / Case DO-201AD, Axial
Supplier Device Package C-16
Operating Temperature - Junction -40°C ~ 150°C
Base Product Number 31DQ05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Names *31DQ05,31DQ05,VS-31DQ05-ND,VS31DQ05,VS31DQ05-ND
Standard Package 500
Win Source Part Number 1125295-VS-31DQ05
Ultra Librarian 3D Model Ultra Librarian VS-31DQ05 CAD Model

Description

The Vishay General Semiconductor - Diodes Division VS-31DQ05 is a Schottky diode with a voltage of 50 V and average rectified current of 3.3A. It has a forward voltage of 620 mV at 3 A and a reverse leakage current of 2 mA at 50 V. The product has a through-hole mounting type and a package type of DO-201AD, Axial with supplier device package C-16. It operates in a temperature range of -40°C to 150°C and is a part of the Discrete Semiconductor Products > Diodes - Rectifiers - Single category.
