Same model may have multiple batches, images only for reference.

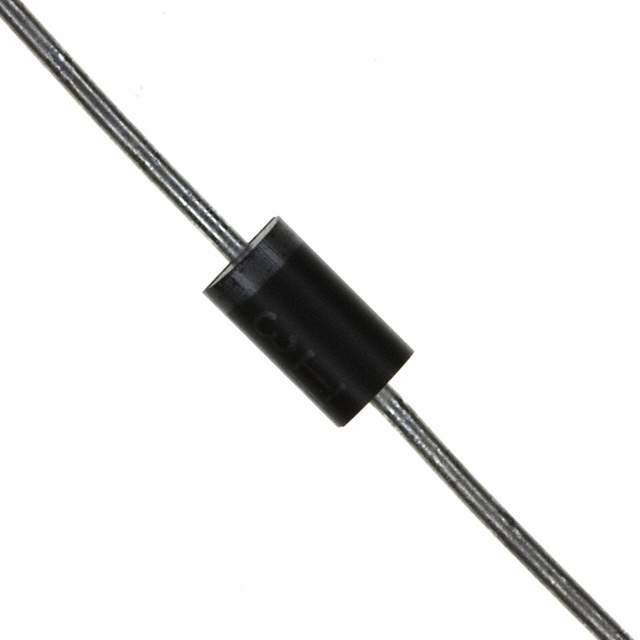

VS-31DQ09 Real Image
Same model may have multiple batches, images only for reference.

VS-31DQ09

Part No VS-31DQ09
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 90V 3.3A C16
Datasheet
VS-31DQ09 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 90V
Current - Average Rectified (Io) 3.3A
Voltage - Forward (Vf) (Max) @ If 850mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 90V
Mounting Through Hole
Case / Package C-16
Operating Temperature - Junction -40°C to 150°C
Win Source Part Number 1117634-VS-31DQ09
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian VS-31DQ09 CAD Model

Description

The Vishay 1117634-VS-31DQ09 is a Schottky diode that is designed for use in discrete semiconductor products.

  • Mounting Type: Through-Hole
  • Maximum DC Reverse Voltage: 90V
  • Average Rectified Current: 3.3A
  • Voltage Forward @ Maximum Current: 850mV
  • Recovery Speed: Fast (200mA)
  • Operating Temperature: -40°C to 150°C
  • Package: C-16
  • Status: Obsolete
  • Supply and Demand Status: Balanced
