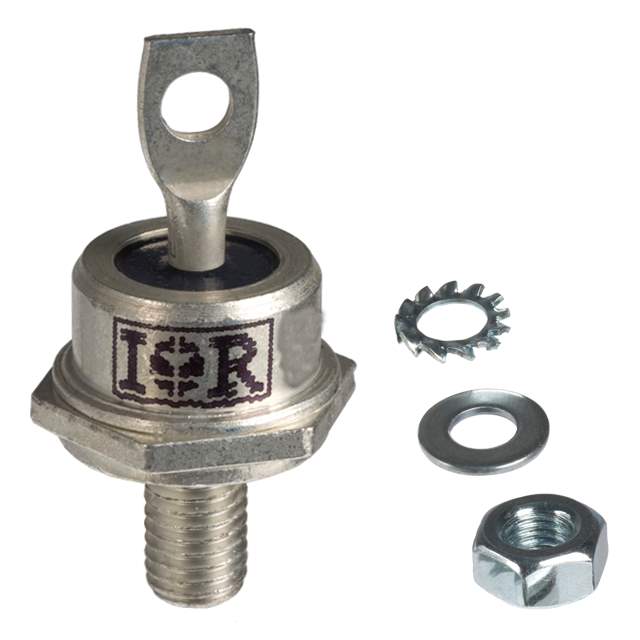

VS-40HF120 Real Image
Same model may have multiple batches, images only for reference.

VS-40HF120

Part No VS-40HF120
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 1.2KV 40A DO203AB
Datasheet
VS-40HF120 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 1200V
Current - Average Rectified (Io) 40A
Voltage - Forward (Vf) (Maximum) @ If 1.3V @ 125A
Speed Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 9mA @ 1200V
Mounting Chassis, Stud Mount
Package DO-203AB, DO-5, Stud
Manufacturer Package DO-203AB
Operating Temperature - Junction -65°C ~ 190°C
Win Source Part Number 763555-VS-40HF120
Popularity Medium
Supply and Demand Status Limited
Family Name VS-40HF120
ECCN EAR99
Halogen Free Unknown
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian VS-40HF120 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-40HF120 is a standard diode with a current rating of 40A and a voltage rating of 1200V.

  • Current Rating: 40A
  • Voltage Rating: 1200V
  • Maximum Forward Voltage: 1.3V @ 125A
  • Reverse Leakage Current: 9mA @ 1200V
  • Mounting: Chassis and stud mount
  • Package: DO-203AB, DO-5, Stud
  • Recovery: Standard recovery of more than 500ns
  • Current: More than 200mA (Io)
  • Operating Temperature Range: -65°C to 190°C
  • Estimated EOL Date: 2026
