Same model may have multiple batches, images only for reference.

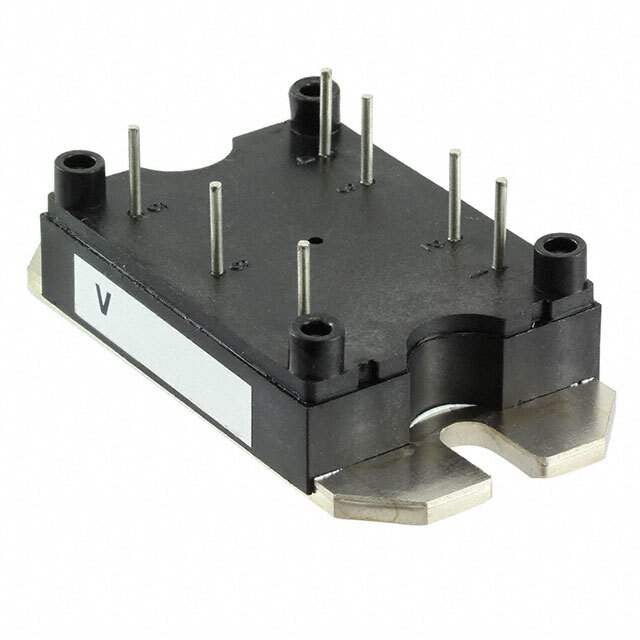

VS-40MT160PBPBF Real Image
Same model may have multiple batches, images only for reference.

VS-40MT160PBPBF

Part No VS-40MT160PBPBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 3P 1.6KV 45A 7-MTPB
Datasheet
VS-40MT160PBPBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay
Package Bulk
Product Status Active
Diode Type Three Phase
Technology Standard
Voltage - Peak Reverse (Max) 1.6 kV
Current - Average Rectified (Io) 45 A
Voltage - Forward (Vf) (Max) @ If 1.51 V @ 100 A
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case 7-MTPB
Supplier Device Package 7-MTPB
Base Product Number 40MT160
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847126-VS-40MT160PBPBF
Ultra Librarian 3D Model Ultra Librarian VS-40MT160PBPBF CAD Model

Description

The 847126-VS-40MT160PBPBF is a bridge rectifier diode designed for three-phase applications.

  • Diode Type: Three Phase
  • Average Rectified Current: 45A
  • Voltage - Peak Reverse (Max): 1.6kV
  • Voltage - Forward (Vf) (Max) @ If: 1.51V @ 100A
  • Mounting Type: Chassis Mount
  • Packaging: Bulk
  • Standard Package: 15
  • Operating Temperature: -40°C ~ 150°C
  • Product Status: Active
  • Manufacturer: Vishay
