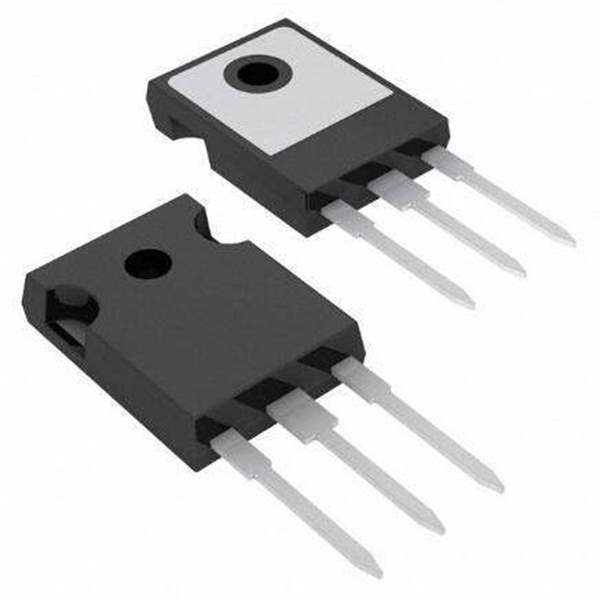

VS-40TPS08A-M3 Vishay General Semiconductor - Diodes Division
Same model may have multiple batches, images only for reference.

VS-40TPS08A-M3

Part No VS-40TPS08A-M3
Manufacturer Vishay
Catalog Thyristors—SCRs
Description SCR 800V 55A TO247AC
Datasheet
VS-40TPS08A-M3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Vishay General Semiconductor - Diodes Division
Category Discrete Semiconductor Products Thyristors SCRs
Part Status Active
Voltage - Off State 800 V
Voltage - Gate Trigger (Vgt) (Max) 2.5 V
Current - Gate Trigger (Igt) (Max) 150 mA
Voltage - On State (Vtm) (Max) 1.85 V
Current - Hold (Ih) (Max) 200 mA
Current - Off State (Max) 500 µA
Current - Non Rep. Surge 50, 60Hz (Itsm) 500A @ 50Hz
Operating Temperature -40°C ~ 125°C
Win Source Part Number WS1305792-VS-40TPS08A-M3
Ultra Librarian 3D Model Ultra Librarian VS-40TPS08A-M3 CAD Model

Description

The VS-40TPS... high voltage series of silicon controlled rectifiers are specifically designed for medium power switching and phase control applications. The glass passivation technology used has reliable operation up to 125 °C junction temperature.
