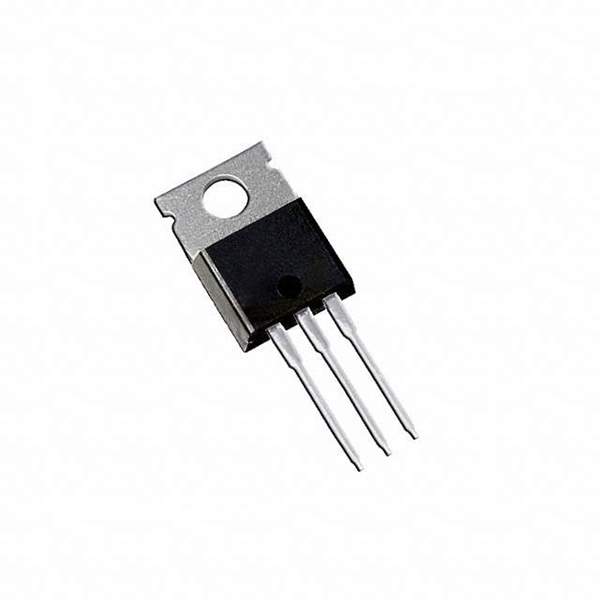

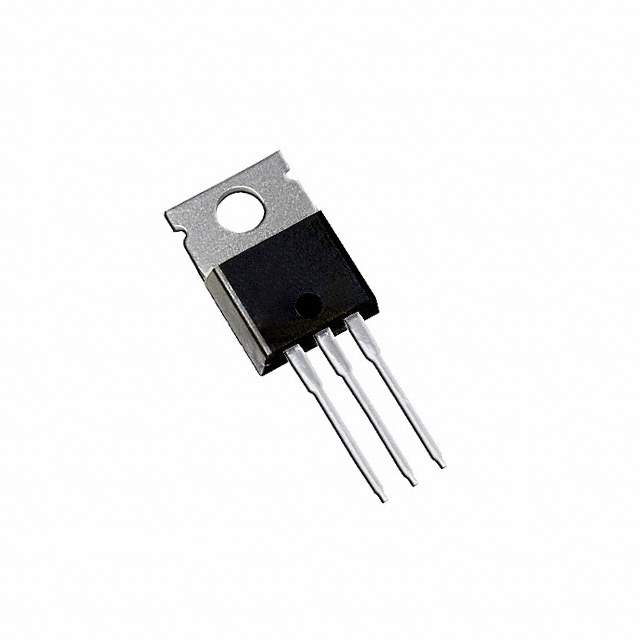

The Vishay VS-40TTS12HM3 is a standard recovery SCR with a current - hold (Ih) (Max) of 100 mA and a voltage - off state of 1.2 kV.

• Current - Hold (Ih) (Max): 100 mA
• Voltage - Off State: 1.2 kV
• Voltage - Gate Trigger (Vgt) (Max): 1.3 V
• Current - Gate Trigger (Igt) (Max): 35 mA
• Voltage - On State (Vtm) (Max): 1.6 V
• Current - On State (It (AV)) (Max): 25 A
• Current - On State (It (RMS)) (Max): 40 A
• Current - Off State (Max): 500 µA
• Current - Non Rep. Surge 50, 60Hz (Itsm): 350A @ 50Hz
• Temperature Range - Operating: -40°C ~ 140°C (TJ)
• Package/Case: TO-220-3
• ECCN: EAR99
