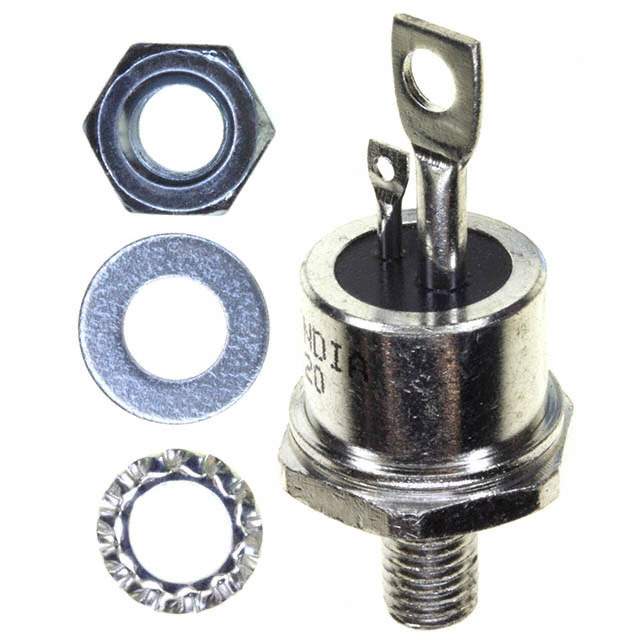

VS-50RIA100 Real Image
Same model may have multiple batches, images only for reference.

VS-50RIA100

Part No VS-50RIA100
Manufacturer Vishay
Catalog SCRs - Single
Description SCR MED POWER 1000V 50A TO-65
Datasheet
VS-50RIA100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Voltage - Off State 1000V
Voltage - Gate Trigger (Vgt) (Maximum) 2.5V
Current - Gate Trigger (Igt) (Maximum) 100mA
Voltage - On State (Vtm) (Maximum) 1.6V
Current - On State (It (AV)) (Maximum) 50A
Current - On State (It (RMS)) (Maximum) 80A
Current - Hold (Ih) (Maximum) 200mA
Current - Off State (Maximum) 15mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1430A, 1490A
SCR Type Standard Recovery
Operating Temperature Range -40°C ~ 125°C
Mounting Chassis, Stud Mount
Package TO-208AC, TO-65-3, Stud
Manufacturer Package TO-208AC (TO-65)
Win Source Part Number 763870-VS-50RIA100
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian VS-50RIA100 CAD Model

Description

The VS-50RIA100 is a standard recovery SCR manufactured by Vishay Semiconductor Diodes Division.

  • Package: TO-208AC, TO-65-3 stud
  • Mounting: Chassis, stud
  • On-State Current: 80A
  • Off-State Voltage: 1000V
  • Gate Trigger Voltage: 2.5V
  • Gate Trigger Current: 100mA
  • Non-Repetitive Surge Current: 1430A @ 50Hz, 1490A @ 60Hz
  • Operating Temperature Range: -40°C to 125°C
  • Supply and demand status: Limited
