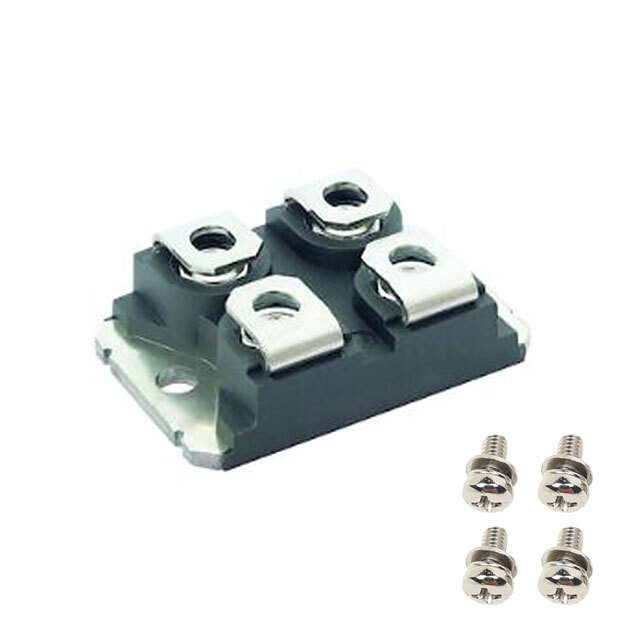

VS-FC420SA15

Name: VS-FC420SA15
Brand: Vishay
SKU: 1338962
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	VS-FC420SA15
Manufacturer	Vishay
Catalog	Transistors - FETs, MOSFETs - RF
Description	MOSFET N-CH 150V 400A SOT227 / N-Channel 150 V 400A (Tc) 909W (Tc) Chassis Mount SOT-227
Datasheet	VS-FC420SA15 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Vishay General Semiconductor - Diodes Division
Package	Tube
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150 V
Current - Continuous Drain (Id) @ 25°C	400A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	2.75mOhm @ 200A, 10V
Vgs(th) (Max) @ Id	5.4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	250 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	13700 pF @ 25 V
Power Dissipation (Max)	909W (Tc)
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Supplier Device Package	SOT-227
Package / Case	SOT-227-4, miniBLOC
Base Product Number	FC420
Standard Package	10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1338962-VS-FC420SA15
Ultra Librarian 3D Model	Ultra Librarian VS-FC420SA15 CAD Model

Alternative Products

Description

The FC420SA15 is a MOSFET (Metal Oxide) transistor from Vishay General Semiconductor - Diodes Division.

Channel Type: N-Channel
Mounting Type: Chassis Mount
Vdss: 150 V
Power Dissipation: 909W (Tc)
Package/Case: SOT-227-4, miniBLOC
Supplier Device Package: SOT-227
Vgs: ±20V
Operating Temperature: -55°C to 175°C (TJ)
Ciss @ Vds: 13,700 pF @ 25 V
Id @ 25°C: 400A (Tc)
Rds On @ Id, Vgs: 2.75mOhm @ 200A, 10V
Qg @ Vgs: 250 nC @ 10 V
Vgs(th) @ Id: 5.4V @ 1mA
Application: Discrete Semiconductor Products, Transistors, FETs, MOSFETs, Single FETs, MOSFETs
