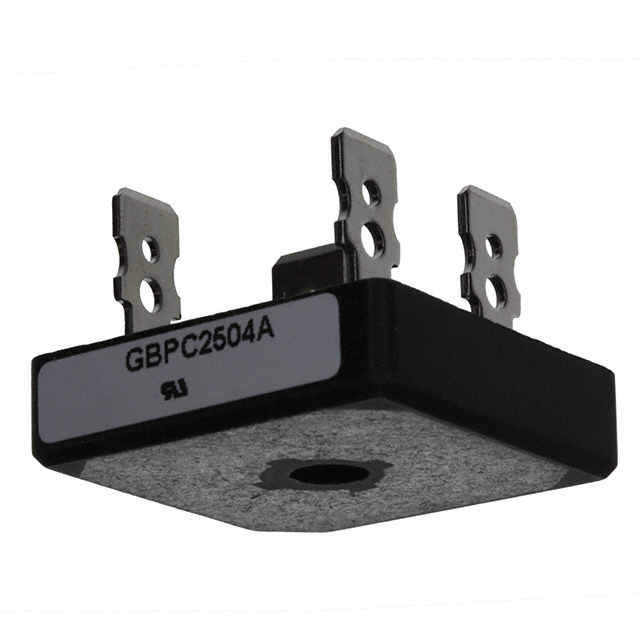

VS-GBPC2504A Vishay
Same model may have multiple batches, images only for reference.

VS-GBPC2504A

Part No VS-GBPC2504A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 1-PH 400V 25A GBPC-A / Diode Rectifier Bridge Single 400V 25A 4-Pin Case GBPC
Datasheet
VS-GBPC2504A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Tray
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 25A
Current - Reverse Leakage @ Vr 2mA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting QC Terminal
Package 4-Square, GBPC-A
Manufacturer Package GBPC-A
Win Source Part Number 774998-VS-GBPC2504A
Popularity Medium
Supply and Demand Status Limited
Family Name VS-GBPC2504A
ECCN EAR99
Estimated EOL Date 2033
Ultra Librarian 3D Model Ultra Librarian VS-GBPC2504A CAD Model

Description

The Vishay Semiconductor Diodes Division 774998-VS-GBPC2504A is a discrete semiconductor product from Vishay Semiconductor Diodes Division.

  • Packaging: Tray
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Mount: QC terminal
  • Diode Type: Single-phase
  • Average Rectified Current: 25A
  • Reverse Leakage Current: 2mA @ 400V
  • Voltage Peak Reverse: 400V
  • ECCN: EAR99
  • Estimated EOL Date: 2033
  • Popularity: Medium
  • Win Source Part Number: 774998-VS-GBPC2504A
