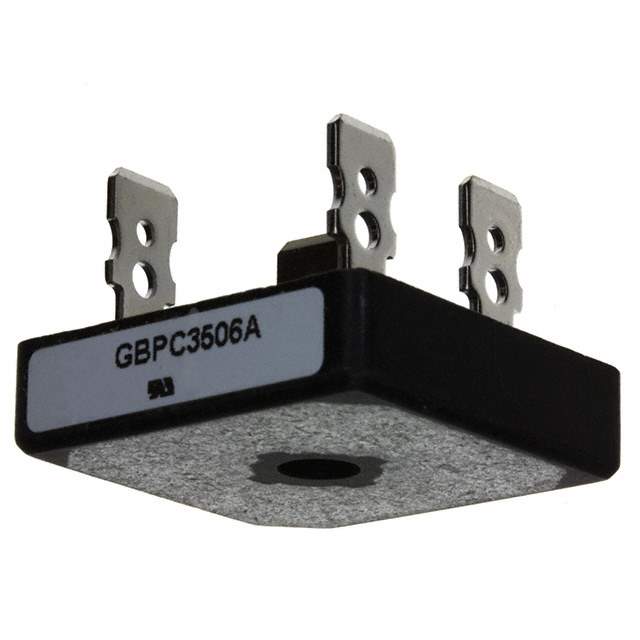

VS-GBPC3506A Real Image
Same model may have multiple batches, images only for reference.

VS-GBPC3506A

Part No VS-GBPC3506A
Manufacturer Vishay
Catalog Bridge Rectifiers
Description RECT BRIDGE 1-PH 600V 35A GBPC-A
Datasheet
VS-GBPC3506A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay
Packaging Bulk
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 600V
Current - Average Rectified (Io) 35A
Current - Reverse Leakage @ Vr 2mA @ 600V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting QC Terminal
Case / Package GBPC-A
Win Source Part Number 057342-VS-GBPC3506A
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Consumer Electronics, Sensing & Instrumentation, Industrial
Ultra Librarian 3D Model Ultra Librarian VS-GBPC3506A CAD Model

Description

The Vishay VS-GBPC3506A is a single-phase bridge rectifier with an average rectified current of 35A and a peak reverse voltage of 600V.

  • Applications: power management, consumer electronics, sensing & instrumentation, and industrial applications
  • Supply and Demand: limited
  • Popularity: medium
  • Package: GBPC-A
  • Mounting: QC terminals
