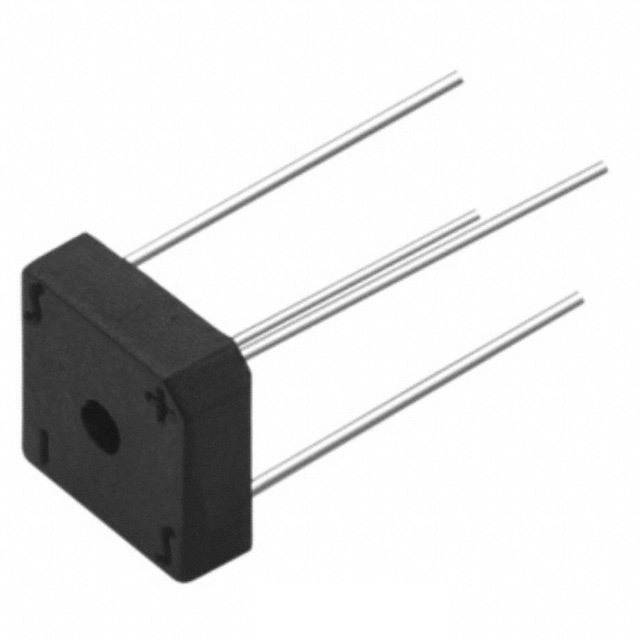

VS-KBPC1005 Vishay
Same model may have multiple batches, images only for reference.

VS-KBPC1005

Part No VS-KBPC1005
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECTIFIER 50V 3.0 D-72 / Diode Rectifier Bridge Single 50V 3A 4-Pin D-46
Datasheet
VS-KBPC1005 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Vishay Semiconductor Diodes Division
Packaging Bulk
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 1000V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Maximum) @ If 1.1V @ 1.5A
Current - Reverse Leakage @ Vr 10μA @ 50V
Operating Temperature Range -40°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-Square, D-72
Manufacturer Package D-72
Win Source Part Number 777970-VS-KBPC1005
Popularity Medium
Supply and Demand Status Limited
Family Name VS-KBPC1005
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian VS-KBPC1005 CAD Model

Description

The Vishay Semiconductor Diodes Division VS-KBPC1005 is a high-performance diode module. The specifications are as follows:

  • Supply: Limited
  • Demand: Medium
  • Package: 4-Square, D-72
  • RoHS Compliance: Yes
  • Operating Temperature Range: -40°C ~ 150°C (TJ)
  • Current - Average Rectified (Io): 3A
