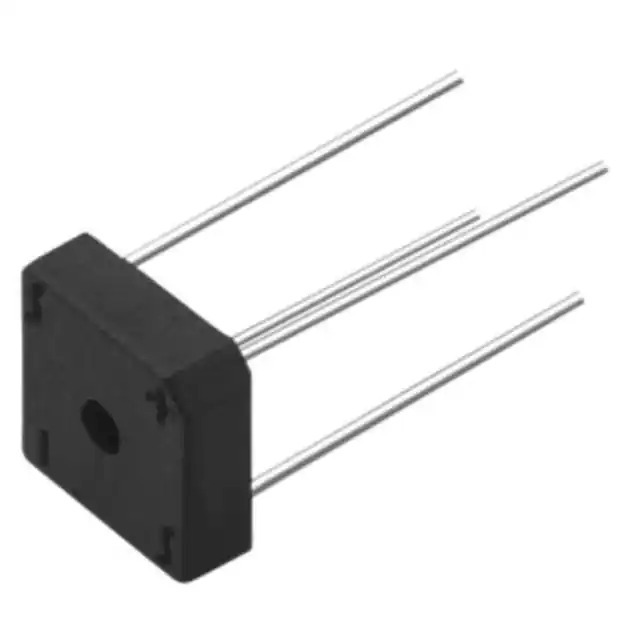

VS-KBPC610PBF Vishay
Same model may have multiple batches, images only for reference.

VS-KBPC610PBF

Part No VS-KBPC610PBF
Manufacturer Vishay
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 6A D-72
Datasheet
VS-KBPC610PBF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Vishay General Semiconductor - Diodes Division
Series VS-KBPC6
Package Bulk
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 6 A
Voltage - Forward (Vf) (Max) @ If 1.2 V @ 3 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case 4-Square, D-72
Supplier Device Package D-72
Base Product Number KBPC610
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368027-VS-KBPC610PBF
Ultra Librarian 3D Model Ultra Librarian VS-KBPC610PBF CAD Model

Description

The VS-KBPC610PBF is a bridge rectifier diode from Vishay General Semiconductor - Diodes Division.

  • Series: VS-KBPC6
  • Diode Technology: Standard
  • Average Rectified Current: 6A
  • Forward Voltage: 1.2V @ 3A
  • Reverse Leakage Current: 10 µA @ 1000V
  • Package: 4-Square, D-72
  • Supplier Device Package: D-72
  • Base Product Number: KBPC610
  • Mounting Type: Through Hole
  • Current Surge Rating: 1.2 kA
  • Maximum Peak Reverse Voltage: 1 kV
  • Application: Suitable for a variety of applications in electronic circuits
