The TPS22925BNYPHT from Texas Instruments is a high-performance, single channel load switch designed for power management applications. This device offers a compact and efficient solution for controlling power distribution to system peripherals and integrated circuits.

Key Features

• Ultra-Low On-Resistance: The TPS22925BNYPHT features an ultra-low on-resistance (RON) of only 28 mΩ at 4.5V, which minimizes power loss and improves overall system efficiency.
• Input Voltage Range: This load switch operates over a wide input voltage range from 1.1V to 5.5V, making it suitable for a variety of low-voltage applications.
• Current Handling: It is capable of handling up to 2A of continuous current, ensuring reliable performance for high-current applications.
• Quick Output Discharge: The integrated quick output discharge (QOD) feature allows the output capacitor to be discharged rapidly when the switch is turned off, preventing any unwanted power residue in the system.
• Controlled Slew Rate: The device provides a controlled slew rate which helps to minimize inrush current and reduce the impact on the power supply during turn-on.

Applications

The TPS22925BNYPHT is ideal for a variety of applications, including but not limited to:

• Smartphones, Tablets, and Portable Electronics
• Power Distribution Systems
• Storage & Peripherals
• Wearable Devices

Package and Reliability

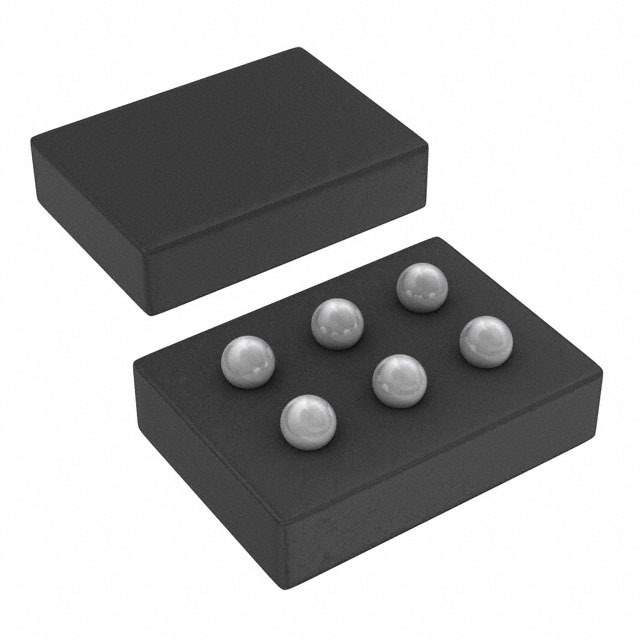

This load switch is offered in a compact, space-saving 6-pin 1.2mm x 1.2mm wafer chip-scale package (WCSP) which is suitable for space-constrained applications. The TPS22925BNYPHT is characterized for operation over the free-air temperature range of -40°C to 85°C, ensuring reliable performance across a wide range of environmental conditions.

Design Resources

Texas Instruments provides comprehensive design resources for the TPS22925BNYPHT, including datasheets, application notes, and design tools to assist engineers in integrating this load switch into their designs with ease.
