Same model may have multiple batches, images only for reference.

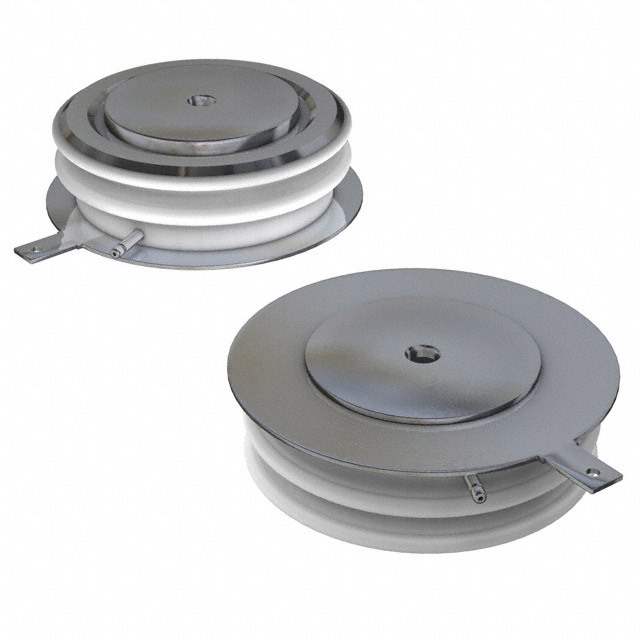

VS-SD303C25S20C Real Image
Same model may have multiple batches, images only for reference.

VS-SD303C25S20C

Part No VS-SD303C25S20C
Manufacturer Vishay
Catalog Diodes, Rectifiers - Single
Description DIODE GP 2.5KV 350A DO200AA / Diode 2500 V 350A Clamp On DO-200AA, A-PUK
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Vishay
Package Bulk
Product Status Last Time Buy
Technology Standard
Voltage - DC Reverse (Vr) (Max) 2500 V
Current - Average Rectified (Io) 350A
Voltage - Forward (Vf) (Max) @ If 2.26 V @ 1100 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 2 µs
Current - Reverse Leakage @ Vr 35 mA @ 2500 V
Mounting Type Clamp On
Package / Case DO-200AA, A-PUK
Supplier Device Package DO-200AA, A-PUK
Base Product Number SD303
Standard Package 12 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 847001-VS-SD303C25S20C
Ultra Librarian 3D Model Ultra Librarian VS-SD303C25S20C CAD Model

Description

The 847001-VS-SD303C25S20C is a standard recovery rectifier diode designed for various applications from Vishay.

  • Maximum Reverse Voltage: 2500 V
  • Average Rectified Current: 350A
  • Reverse Recovery Time: 2µs
  • Package: DO-200AA, A-PUK
  • Mounting Type: Clamp-On
