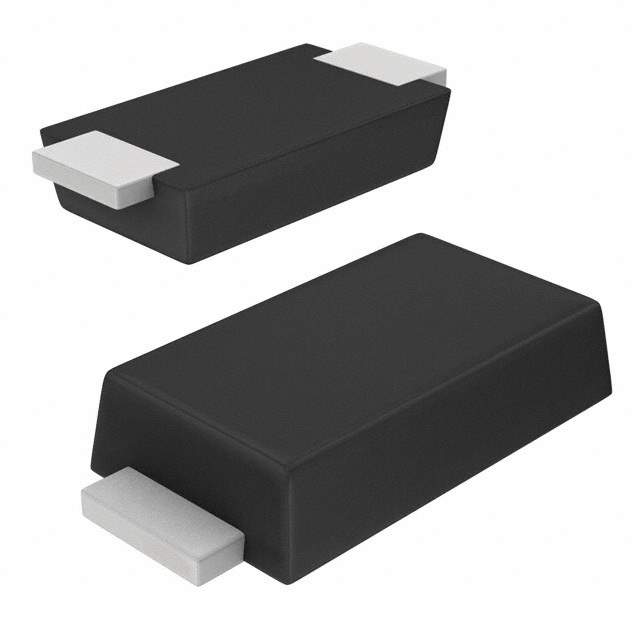

VSSAF5L45-M3/6B

Name: VSSAF5L45-M3/6B
Brand: Vishay
SKU: 1135186
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	VSSAF5L45-M3/6B
Manufacturer	Vishay
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 45V 3A DO221AC / Diode Schottky 45 V 3A Surface Mount DO-221AC (SlimSMA)
Datasheet	VSSAF5L45-M3/6B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr	Vishay General Semiconductor - Diodes Division
Series	TMBS®, SlimSMA™
Package	Tape & Reel (TR)
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	560 mV @ 5 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	650 µA @ 45 V
Capacitance @ Vr, F	740pF @ 4V, 1MHz
Mounting	SMD (SMT)
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	DO-221AC (SlimSMA)
Operating Temperature - Junction	-40°C ~ 150°C
Base Product Number	SAF5L45
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	VSSAF5L45M36B
Standard Package	14,000
Win Source Part Number	1135186-VSSAF5L45-M3/6B
Ultra Librarian 3D Model	Ultra Librarian VSSAF5L45-M3/6B CAD Model

Alternative Products

Description

The VSSAF5L45-M3/6B is a Schottky diode from Vishay General Semiconductor - Diodes Division.

Voltage Rating: 45 V
Current Rating: 3A
Forward Voltage: 560 mV @ 5 A
Reverse Leakage Current: 650 µA @ 45 V
RoHS Compliant: Yes
Operating Temperature Range: -40°C to 150°C
Speed: Fast Recovery (<500ns and >200mA (Io))
Package: DO-221AC, SMA Flat Leads
Packaging: Tape and Reel
