Same model may have multiple batches, images only for reference.

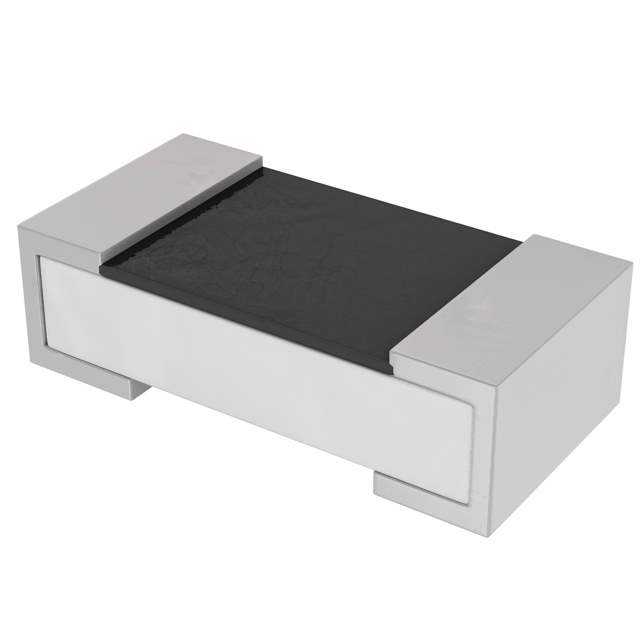

WFCP06039L000FE66 Real Image
Same model may have multiple batches, images only for reference.

WFCP06039L000FE66

Part No WFCP06039L000FE66
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.009 OHM .5 W 1% 0603 SMD / 9 mOhms ±1% 0.5W, 1/2W Chip Resistor 0603 (1608 Metric) Current Sense Metal Foil
Datasheet
WFCP06039L000FE66 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WFCP
Package Tape & Reel (TR),Cut Tape (CT)
Resistance 9 mOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.028" (0.70mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-WFCP06039L000FE66TR,541-WFCP06039L000FE66CT
Standard Package 5,000
Win Source Part Number 1135770-WFCP06039L000FE66
Ultra Librarian 3D Model Ultra Librarian WFCP06039L000FE66 CAD Model

Description

The WFCP06039L000FE66 is a chip resistor from Vishay Dale.

  • Resistance: 9 mOhms
  • Tolerance: ±1%
  • Power Rating: 0.5W
  • Composition: Metal Foil
  • Temperature Coefficient: ±100ppm/°C
  • Package/Case: 0603 (1608 Metric)
  • Height: 0.028" (0.70mm)
  • Application: Current Sensing
  • Operating Temperature Range: -55°C to 170°C
