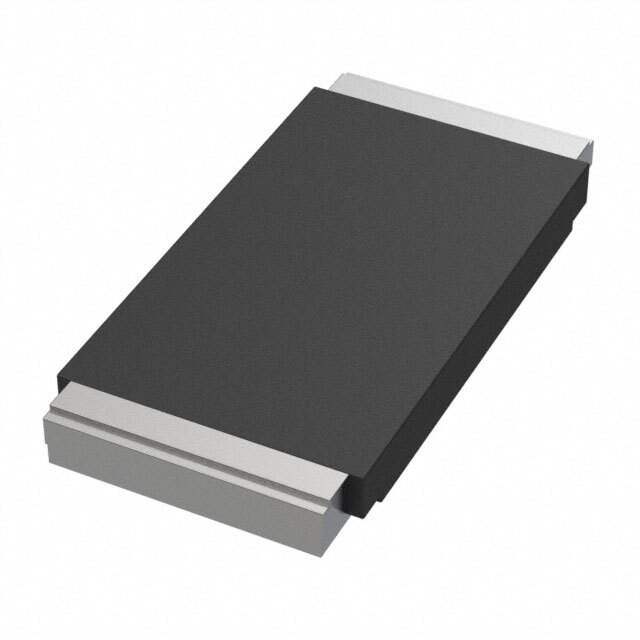

WFMA2512R0200FEA Vishay Dale
Same model may have multiple batches, images only for reference.

WFMA2512R0200FEA

Part No WFMA2512R0200FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.02 OHM 3.0 W 1% 2512 SMD
Datasheet
WFMA2512R0200FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Manufacturer Vishay Dale
Packaging Tape & Reel (TR) Cut Tape (CT)
Part Status Active
Resistance (Ohms) 20 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Metal Film
Feature Automotive AEC-Q200, Current Sense, Moisture Resistant
Temperature Coefficient ±110ppm/°C
Ultra Librarian 3D Model Ultra Librarian WFMA2512R0200FEA CAD Model

Description

  • 2010 and 2512 size package
  • Ideal for all types of current sensing and pulse applications including switching and linear power supplies, instruments, power amplifiers, shunts, power inverters, and battery management
  • Proprietary processing technique produces low resistance values (10 mΩ to 500 mΩ)
  • Solid metal manganese-copper and nickelchromium-aluminum alloy resistive element with low TCR (< 20 ppm/°C)
  • Very low inductance 0.5 nH to 5 nH
  • Low thermal EMF (< 3 μV/°C)
  • Sulfur resistance by construction that is unaffected by high sulfur environments
  • AEC-Q200 qualified (1)
