Same model may have multiple batches, images only for reference.

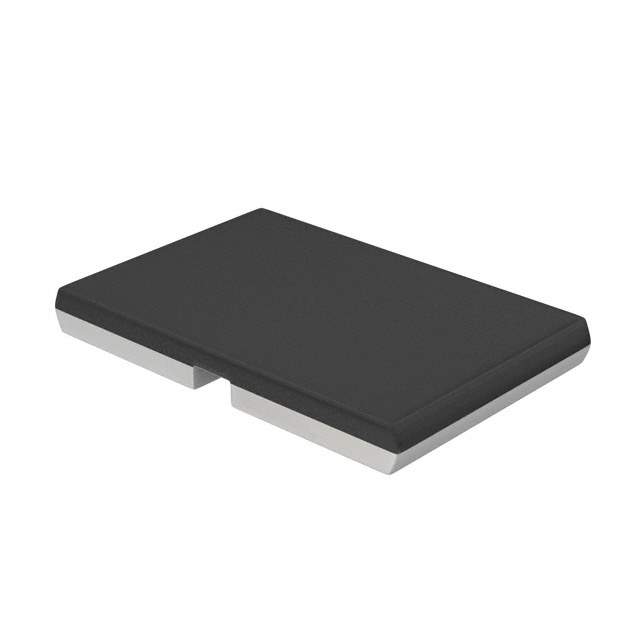

WSH2818R0300FEA Real Image
Same model may have multiple batches, images only for reference.

WSH2818R0300FEA

Part No WSH2818R0300FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 0.03 OHM 1% 5W 2818
Datasheet
WSH2818R0300FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Manufacturer Vishay
Packaging Reel - TR
Status Obsolete(EOL)
Resistance (Ohms) 0.03
Tolerance ±1%
Power (Watts) 5W
Composition Metal Element
Features Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C to 170°C
Case / Package 2818
Height - Seated (Max) 0.055" (1.39mm)
Number of Terminations 2
Win Source Part Number 1118046-WSH2818R0300FEA
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian WSH2818R0300FEA CAD Model

Description

The Vishay 468974 is a metal element resistor with a resistance of 0.03 ohms and a power rating of 5W.

  • Resistance: 0.03 ohms
  • Power Rating: 5W
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • Application: Automotive AEC-Q200
  • Features: Moisture resistant and pulse withstanding
  • Height: 0.055 inches (1.39mm)
  • Terminations: Two
  • Packaging: Reel
  • Package: 2818
  • Operating Temperature Range: -65°C to 170°C
  • Status: Obsolete (EOL)
  • Popularity: Medium
