Same model may have multiple batches, images only for reference.

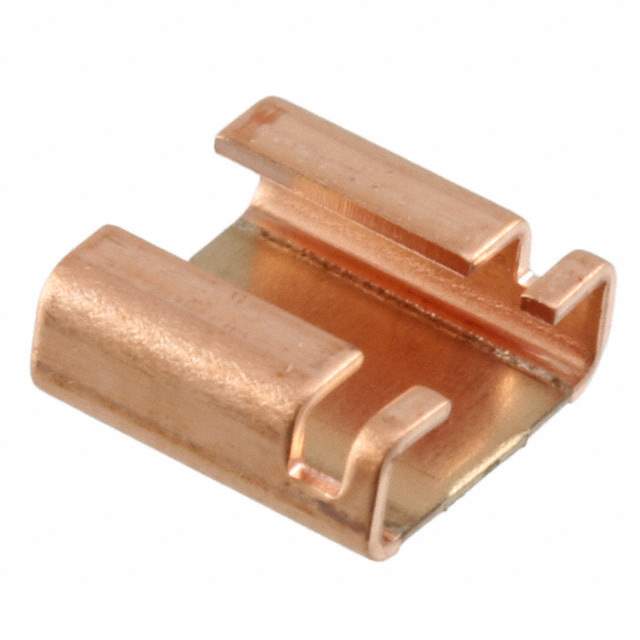

WSL27265L000FEA Real Image
Same model may have multiple batches, images only for reference.

WSL27265L000FEA

Part No WSL27265L000FEA
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.005 OHM 1% 3W 2726  /  5 mOhms ±1% 3W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Datasheet
WSL27265L000FEA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Resistance 5 mOhms
Tolerance ±1%
Power (Watts) 3W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2726
Ratings AEC-Q200
Dimension 0.272" L x 0.260" W (6.90mm x 6.60mm)
Height - Seated (Max) 0.118" (3.00mm)
Number of Terminations 4
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Names 541-9999-1,WSL27265L000FEA-ND,541-9999-6,541-9999-2
Standard Package 1,500
Win Source Part Number 1000756-WSL27265L000FEA
Ultra Librarian 3D Model Ultra Librarian WSL27265L000FEA CAD Model

Description

The Vishay Dale WSL27265L000FEA chip resistor is a high-performance resistor that features a resistance of 5mohms and a power rating of 3W.

  • Resistance: 5mohms
  • Power Rating: 3W
  • Applications: automotive and industrial applications
  • Package: tape & reel
  • Operating Temperature: -65°C to 170°C
  • Tolerance: ±1%
  • Temperature Coefficient: ±75ppm/°C
  • MSL Level: 1 (Unlimited)
  • ECCN: EAR99
