Same model may have multiple batches, images only for reference.

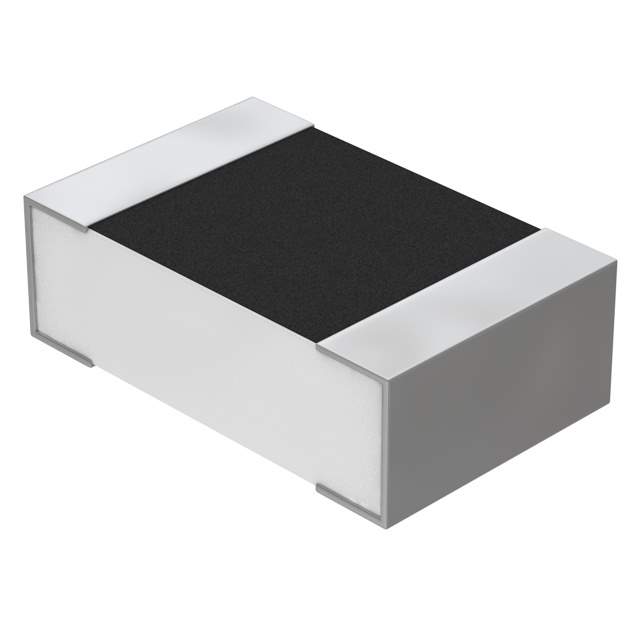

Y16245K00000T9R Real Image
Same model may have multiple batches, images only for reference.

Y16245K00000T9R

Part No Y16245K00000T9R
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES SMD 5K OHM 0.01% 1/5W 0805 / 5 kOhms ±0.01% 0.2W, 1/5W Chip Resistor 0805 (2012 Metric) Moisture Resistant, Non-Inductive Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Foil Resistors (Division of Vishay Precision Group)
Series VSMP
Package Tape & Reel
Resistance 5 kOhms
Tolerance ±0.01%
Power (Watts) 0.2W, 1/5W
Composition Metal Foil
Features Moisture Resistant, Non-Inductive
Temperature Coefficient ±0.2ppm/°C
Temperature Range - Operating -55°C ~ 150°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Size / Dimension 0.080" L x 0.050" W (2.03mm x 1.27mm)
Height - Seated (Max) 0.025" (0.64mm)
Number of Terminations 2
Standard Package 200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1337867-Y16245K00000T9R
Ultra Librarian 3D Model Ultra Librarian Y16245K00000T9R CAD Model

Description

The Y16245K00000T9R is a chip resistor from Vishay Foil Resistors (Division of Vishay Precision Group).

  • Resistance: 5 kOhms
  • Power: 0.2W, 1/5W
  • Composition: Metal Foil
  • Tolerance: ±0.01%
  • Temperature Coefficient: ±0.2ppm/°C
  • Mounting Type: Surface Mount
  • Package/Case: 0805 (2012 Metric)
  • Supplier Device Package: 0805
  • Features: Moisture Resistant, Non-Inductive
  • Operating Temperature: -55°C to 150°C
