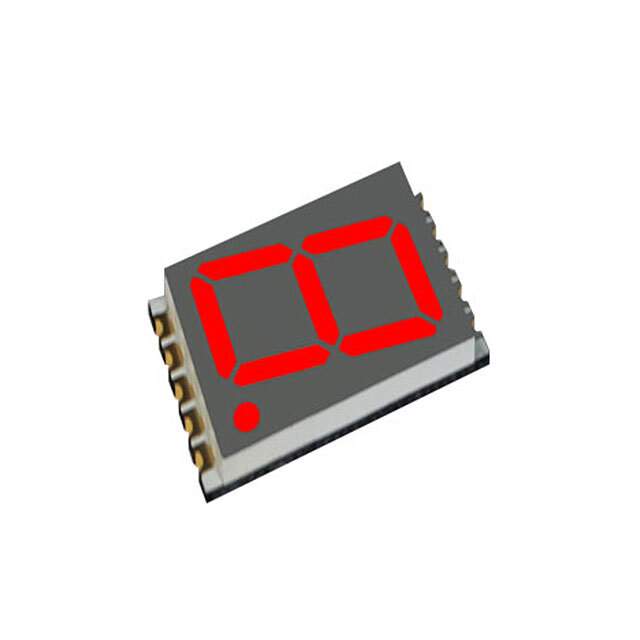

DSM7UA56101 Real Image
Same model may have multiple batches, images only for reference.

DSM7UA56101

Part No DSM7UA56101
Manufacturer Visual Communications Company - VCC
Catalog Display Modules - LED Character and Numeric
Description DISPLAY 7SEG 0.56" SGL RED 10SMD / Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.787" H x 0.492" W x 0.083" D (20.00mm x 12.50mm x 2.10mm) 10-SMD, No Lead
Datasheet
DSM7UA56101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics - LED Character and Numeric
Mfr Visual Communications Company - VCC
Series DSM
Package Strip
Number of Characters 1
Size / Dimension 0.787" H x 0.492" W x 0.083" D (20.00mm x 12.50mm x 2.10mm)
Digit/Alpha Size 0.56" (14.22mm)
Display Type 7-Segment
Common Pin Common Anode
Color Red
Voltage - Forward (Vf) (Typ) 2V
Current - Test 20mA
Millicandela Rating 25mcd
Wavelength - Peak 624nm
Power Dissipation (Max) 70mW
Package / Case 10-SMD, No Lead
Base Product Number DSM7UA561
Standard Package 100
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1342140-DSM7UA56101
Ultra Librarian 3D Model Ultra Librarian DSM7UA56101 CAD Model

Description

The Visual Communications Company - VCC DSM7UA56101 is a red LED 7-segment display that provides bright and clear numeric characters.

  • Color: Red
  • Millicandela Rating: 25mcd
  • Forward Voltage (Vf) (Typ): 2V
  • Common Pin: Common Anode
  • Number of Segments: 7
  • Configuration: Numeric
  • Package / Case: 10-SMD, No Lead
  • Size / Dimension: 0.787" H x 0.492" W x 0.083" D (20.00mm x 12.50mm x 2.10mm)
  • Packaging: Strip
  • Package Quantity: 100
