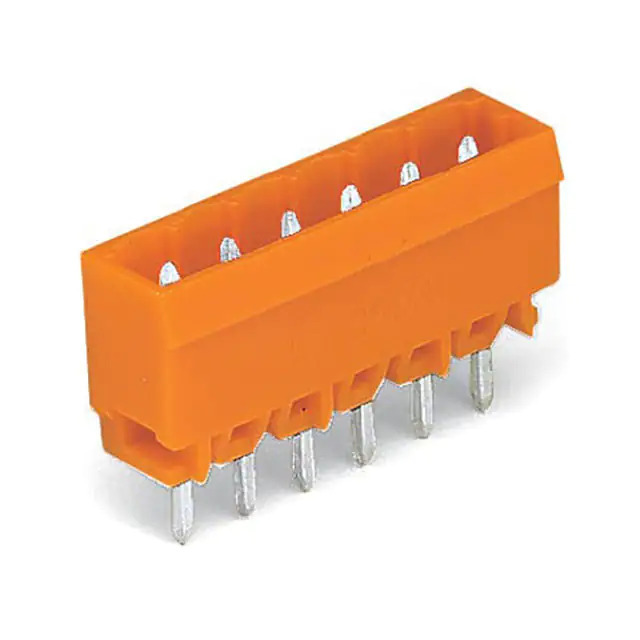

Same model may have multiple batches, images only for reference.
231-333/001-000 WAGO Corporation
Same model may have multiple batches, images only for reference.

231-333/001-000

Part No 231-333/001-000
Manufacturer WAGO Corporation
Catalog Headers, Plugs and Sockets
Description THT MALE HEADER; 1.0 X 1.0 MM SO / 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) Vertical Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr WAGO Corporation
Series MCSMIDI Classic
Package Box
Product Status Active
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Positions Per Level 3
Number of Levels 1
Pitch 0.200" (5.08mm)
Header Orientation Vertical
Plug Wire Entry -
Termination Style Solder
Mounting Type Through Hole
Current - IEC 12A
Voltage - IEC 630 V
Current - UL 10 A
Voltage - UL 600 V
Wire Gauge or Range - AWG -
Wire Gauge or Range - mm² -
Color Orange
Temperature Range - Operating -60°C ~ 100°C
Contact Mating Finish Tin
Features -
Material Flammability Rating UL94 V-0
Ingress Protection -
Screw Size -
Torque - Screw -
Wire Strip Length -
Contact Material Electrolytic Copper
Housing Material Polyamide (PA66), Nylon 6/6
Contact Tail Length 0.197" (5.00mm)
Insulation Height 0.472" (12.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.90.4000
Win Source Part Number 1364628-231-333/001-000
Ultra Librarian 3D Model Ultra Librarian 231-333/001-000 CAD Model

Description

The 231-333/001-000 is a terminal block header from WAGO Corporation's MCSMIDI Classic series.

  • Mounting Type: Through-Hole
  • Pitch: 0.200" (5.08mm)
  • Positions: 3
  • Color: Orange
  • Current Rating (IEC): 12A
  • Current Rating (UL): 10A
  • Voltage Rating (UL): 600V
  • Voltage Rating (IEC): 630V
  • Contact Material: Electrolytic Copper
  • Housing Material: Polyamide (PA66), Nylon 6/6
  • Insulation Height: 0.472" (12.00mm)
  • Contact Tail Length: 0.197" (5.00mm)
  • Product Status: Active
  • Category: Connectors and Interconnects
  • Suitable for: Various applications that require secure and reliable electrical connections
